Cytotoxic CD4⁺ T lymphocytes may induce endothelial cell apoptosis in systemic sclerosis

Systemic sclerosis (SSc) is a systemic autoimmune inflammatory disorder of unknown etiology characterized by prominent fibrosis that may affect many organs including the skin, lungs, kidneys, and gastrointestinal tract (1). Another important feature of this disease is vasculopathy that leads to vasospasm, pulmonary arterial remodeling, and microvascular obliteration (1–4). SSc is progressive, highly morbid, and in its most severe form carries a mortality rate comparable to the most fatal metastatic cancers (5). Current treatment paradigms slow fibrosis but do not halt or reverse it. True disease regression has only consistently been observed following autologous stem cell transplantation (6–9). The therapeutic efficacy of stem cell transplantation supports the notion that SSc is driven by an aberrant immune response and that the disease process can be reversed. Our imprecise understanding of the immune mechanisms that drive SSc likely contributes to the difficulty in identifying effective therapeutics in this disease.

T cells are present in SSc tissues and have been postulated to drive both the endothelial dysfunction and the fibrotic pathology of this disease, presumably via the secretion of cytokines that eventually contribute to the activation of macrophages, fibroblasts, and myofibroblasts (10). The latter 2 cell types, fibroblasts and myofibroblasts, secrete type I collagens and matrix metalloproteinases such as MMP-9 and MMP-12, and the process of dysregulated wound healing could contribute to the fibrosis seen in this disease. Whether fibrosis is a consequence of parenchymal cell death and tissue remodeling or results primarily from the cytokines within an inflammatory milieu is unclear. These mechanisms are not mutually exclusive, however, and could even be sequential.

In SSc, Th2 cells, Th17 cells, Th1 cells, Th22 cells, Treg cells, T follicular helper (Tfh) cells, and CD8⁺ T cells have all been implicated in the pathogenic process (11–21). However, no previous studies have used quantitative approaches to enumerate T cell subsets within SSc lesions. There remains a paucity of information regarding the phenotype of infiltrating T cells and the precise role of T cells in the pathogenesis of this disease remains to be established. Although B cells have also been associated with the pathogenesis of SSc and beneficial effects of B cell–depleting therapy have been reported, the relative contributions of B and T lymphocytes have not been systematically interrogated at the tissue level (22–24).

We chose to interrogate cytotoxic CD4⁺ T lymphocytes (CD4⁺ CTLs) and other CD4⁺ T cell subsets in SSc tissues based on our previous blood and tissue studies on IgG4-related disease (IgG4-RD). IgG4-RD is also a chronic, immune-mediated fibrotic disorder characterized by inflammatory tumor-like masses with a predilection for the lacrimal glands, salivary glands, pancreas, bile ducts, and retroperitoneal tissues (25). We have identified CD4⁺ CTLs as the dominant effector CD4⁺ T cell subset infiltrating tissues affected by IgG4-RD along with large clonal expansions in the blood (26–28). These cells decline in conjunction with treatment-induced remission (26, 28). CD4⁺ CTLs have the potential to drive fibrosis through the elaboration of profibrotic cytokines and/or by the induction of apoptosis of target cells (26).

CD4⁺ CTLs have been extensively studied in the setting of chronic viral infections such as CMV and HIV but there remain many gaps in our knowledge regarding these cells and their potential role in immune-mediated fibrosis (29–31). In addition to the in-depth investigation of CD4⁺ CTLs in IgG4-RD, these cells have also been associated with idiopathic pulmonary fibrosis and CD4⁺ T cells with a cytotoxic phenotype have recently been reported in the context of rheumatoid arthritis (32, 33). Studies in healthy volunteers demonstrated heterogeneity of CD4⁺ CTLs among effector memory T cells that had regained CD45RA expression (Temra), and an IL-7 receptor–expressing subset was defined as the precursor population to effector CD4⁺ CTLs (34, 35). Functional subsets of CD4⁺ CTLs have, however, not been identified in the context of inflammation and human fibrotic disease. Moreover, although we had previously described CD4⁺ CTL expansions within the blood of a relatively small number of SSc patients, the relevance of these cells to the pathogenesis of SSc has not yet been investigated rigorously, and the broader relevance of CD4⁺ CTLs to diseases other than IgG4-RD requires exploration (26).

In our studies described here, we show that both CD4⁺ and CD8⁺ T cells accumulate in skin biopsies of untreated patients with early diffuse SSc and outnumber infiltrating B cells. In most of these patients CD4⁺ CTLs represent the dominant CD4⁺ T cell subset infiltrating the skin, whereas Th1, Th2, Tfh, and Treg cells are relatively sparse in SSc tissues. Examination of selected patients with lower numbers of infiltrating CD4⁺ CTLs revealed some increase in Th17 cells, but the dominant T cells in the overwhelming majority of SSc patients are cytotoxic T cells — including CD4⁺ CTLs and effector CD8⁺ T cells. We catalog the prominent apoptosis of endothelial cells, the accumulation of CD4⁺ CTLs in the vicinity of the endothelium, and the upregulation of HLA class II by endothelial cells in SSc skin biopsies, raising the possibility that CD4⁺ CTLs may drive tissue fibrosis by contributing to the apoptotic death of specific cell types in an antigen-specific manner. In addition, CD4⁺ CTLs elaborate proinflammatory and profibrotic cytokines that may contribute to an overexuberant, cytokine-driven tissue remodeling process inducing the secretion of excessive amounts of collagen, thereby compromising tissue and organ function. We further categorize an effector subset of CD4⁺ CTLs from the blood of SSc patients, denoted by the loss of surface CD28 and gain of CD57. This population of cells shows marked clonal expansion and a highly cytotoxic profile at both the protein and transcriptional levels. We also demonstrate that the accumulation of CD4⁺ CTLs in the skin of SSc patients can be attenuated by treatment with CTLA4-Ig, suggesting that ongoing T cell activation contributes to the pathologic alterations that are observed in this disease.

CD4⁺ CTLs and CD8⁺ T cells are prominent in SSc tissues. In our analyses of the adaptive immune cells infiltrating tissues affected by SSc, we simultaneously quantified the relative contribution of CD3⁺ T cells and CD19⁺ B cells in the skin of 35 patients with early diffuse SSc before the initiation of any immunosuppressive treatment. Although prominent numbers of both B and T cells were observed, the absolute number of infiltrating T cells was greater than those of infiltrating B cells (Figure 1, A and B). Although randomized double-blind clinical trials examining the utility of B cell depletion therapy in SSc have not been performed, some studies have reported clinical improvement with rituximab, especially in the context of early diffuse SSc (22, 23). Additionally, activated B cells have been observed in the circulation of SSc patients (24, 36). Although there may be a contribution of infiltrating B cells to pathology in SSc, we focused on the T cells in the infiltrate across this group of patients given their relative preponderance in the tissue.

Figure 1

Quantification of T and B cells in SSc lesions. (A) Representative multicolor immunofluorescence image of CD3⁺ T cells (red) and CD19⁺ B cells (green) in an SSc lesion. (B) Absolute numbers per mm² of CD3⁺ T cells and CD19⁺ B cells in lesions from 35 patients with SSc. (C) Relative proportions of CD4⁺ and CD8⁺ T cells in skin lesions of individual SSc patients (n = 35). (D) Representative multicolor immunofluorescence images of CD4⁺ (red) and CD8⁺ (green) T cells in SSc tissues. Data are presented as mean ± SEM. ****P < 0.0001 by Mann-Whitney U test.

We first examined the relative contribution of CD8⁺ and CD4⁺ T cells to the overall CD3⁺ T cell infiltrate. We found that CD8⁺ T cells and CD4⁺ T cells were both present in high numbers in SSc tissues, with some variation in the relative abundance of each of these T cell lineages across patients (Figure 1, C and D). Given the varied literature regarding CD4⁺ T cell subsets in the context of SSc, we directly quantified CD4⁺ T cell subsets in the skin across this cohort of 35 untreated patients. We initially defined CD4⁺ CTLs by the coexpression of CD4 and granzyme A (GZMA) and quantified their relative contribution to the total CD4⁺ T cell infiltrate. Consistent with our previous report of expanded CD4⁺ CTLs in the blood of SSc patients (26), we observed a prominent accumulation of CD4⁺ CTLs within the affected skin of SSc patients (Figure 2, A–C). To validate this finding, we additionally costained tissues for CD4 and SLAMF7, a surface marker we have previously described in CD4⁺ CTLs (26). Consistently, we observed a marked expansion of SLAMF7-expressing CD4⁺ T cells in SSc skin samples along with the coexpression of SLAMF7 and GZMA (Supplemental Figure 1, A–C; supplemental material available online with this article; https://doi.org/10.1172/JCI131700DS1). Because multiple reports have associated Th2 cells with the pathogenesis of SSc, we first focused on the relative contribution of Th2 cells compared with CD4⁺ CTLs and observed a striking preponderance of CD4⁺ CTLs in contrast to the small proportions and absolute numbers of Th2 cells (Figure 2, A–C and refs. 11–14). Utilizing skin samples from patients with bullous pemphigoid, an established Th2-mediated autoimmune skin disease, we compared the absolute numbers of CD4⁺ CTLs and Th2 cells across our experimental groups (37). Consistent with previous reports, Th2 cell numbers were greatly increased in bullous pemphigoid tissues and outnumbered those in SSc and healthy control skin (Figure 2C and Supplemental Figure 2). Despite the 5- to 10-fold greater number of CD4⁺ T cells in skin biopsies of bullous pemphigoid patients compared with SSc biopsies, we found the absolute numbers of tissue-infiltrating CD4⁺ CTLs in SSc to be increased in comparison with both healthy control skin and skin affected by bullous pemphigoid (Figure 2C and Supplemental Figure 2). When compared with healthy donor skin samples, 77% of the skin samples from SSc patients demonstrated an expansion of infiltrating CD4⁺ CTLs (using the healthy donor mean + 2 SD as a cutoff) and in many of these patients, CD4⁺ CTLs were the dominant CD4⁺ T cell subset identified at the site of disease (Figure 2B).

Figure 2

CD4⁺ CTLs are abundant in skin lesions of SSc patients. (A) Representative multicolor immunofluorescence image of cells coexpressing CD4 (red) and GZMA (green) that infiltrate the skin in SSc. The right panel additionally displays GATA3 (purple) staining to identify Th2 cells in bullous pemphigoid (BP) tissue. GATA3 staining was also undertaken in SSc. (B) Relative proportions of CD4⁺ CTLs (red), Th2 cells (green), and other CD4⁺ cells (gray) in SSc (n = 35) and BP (n = 7). (C) Absolute number of CD4⁺ CTLs and Th2 cells per mm² of skin, comparing SSc (n = 35) to control skin (n = 10) samples and BP (n = 7). Multiple comparisons are controlled for by Kruskal-Wallis test. (D and E) Relative proportions of Th1, Th2, Th17, and CD4⁺ CTL subsets in tissues from 10 SSc patients. Relative proportions of each subset (D) and of each subset in each patient (E) are depicted. Multiple comparisons are controlled for by Kruskal-Wallis test. Data are presented as mean ± SEM. *P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001.

Other CD4⁺ T cell subsets have also been implicated in the pathogenesis of SSc but comprehensive and quantitative analyses of tissues have not been previously reported (11–14, 19). In order to more comprehensively quantify all major CD4⁺ T cell subsets, including Th1, Th2, Th17, and Tfh cells, as well as Tregs and CD4⁺ CTLs, we selected tissues from a subset of our patients, including a sampling of subjects with CD4⁺ CTL numbers above, at, and below the median (Figure 2, D and E, and Supplemental Figure 3). In 2 of the 10 patients, Th17 cells were more prominent than CD4⁺ CTLs in terms of relative proportions (Figure 2E). However, in the remaining subjects, CD4⁺ CTLs represented the dominant tissue-infiltrating CD4⁺ T cell subset in SSc (Figure 2E). Representative images of markers used to define each CD4⁺ T cell subset are displayed in Supplemental Figure 3.

We previously demonstrated an expanded tissue infiltrate dominated by CD4⁺ CTLs in patients with IgG4-RD (26, 27). Those cells express multiple profibrotic and proinflammatory molecules at sites of disease. As in IgG4-RD, a subset of infiltrating CD4⁺ CTLs in SSc tissues was found to actively express IL-1β (Supplemental Figure 4, A and B).

Given the prominent contribution of CD4⁺ CTLs to the overall CD4⁺ T cell infiltrate and because the numbers of CD4⁺ and CD8⁺ T cells infiltrating SSc tissues were comparable, we sought to determine whether CD8⁺ T cells in the tissues were potentially cytotoxic. Although on average a greater proportion of CD8⁺ T cells (compared with CD4⁺ T cells) expressed GZMA, the absolute numbers of GZMA⁺CD8⁺ T cells were similar to those of GZMA⁺CD4⁺ T cells (Figure 3, A–C).

Figure 3

CD8⁺GZMA⁺ T cells infiltrate tissue in SSc. (A) Representative multicolor immunofluorescence images of CD8⁺ (green) GZMA⁺ (purple) T cells (delineated by arrows) in an SSc skin biopsy. (B) Relative proportions of CD4⁺ and CD8⁺ T cells expressing GZMA (n = 10). (C) Absolute numbers of CD4⁺GZMA⁺ and CD8⁺GZMA⁺ T cells in skin biopsies of 10 patients with SSc. Data are presented as mean ± SEM. **P < 0.01 by Mann-Whitney U test.

Endothelial cells are frequent targets of apoptosis and upregulate HLA class II in SSc tissues. We previously observed the functional capacity for cytotoxicity by CD4⁺ CTLs in in vitro coculture experiments (26). To explore the possibility of the cytotoxic targeting of host cells by tissue-infiltrating cytotoxic T cells, we quantified the number of cells undergoing apoptotic cell death using an antibody that recognizes cleaved caspase-3 (cCasp-3) (Figure 4A). Confirming previous reports associating tissue apoptosis with the pathogenesis of SSc, we observed a marked increase in the absolute number of apoptotic cells in SSc tissues compared with those of controls (Figure 4, B and C). The numbers of apoptotic cells found in tissues affected by SSc were often quite prominent, in the range of 50 to 100 apoptotic cells per high-power field (Figure 4C).

Figure 4

Apoptotic cells are frequently seen in SSc tissues. (A) Representative multicolor immunofluorescence images showing cleaved caspase-3 (cCasp-3) staining (green) in SSc and control skin samples. (B and C) Proportions (B) and absolute numbers (C) of cCasp-3⁺ apoptotic cells in SSc (n = 35) and control skin (n = 10). (D) Proportions of apoptotic cells in SSc (n = 35) and control skin (n = 10) accounted for by T cells (red), B cells (purple), macrophages (yellow), and other cells (blue). Data are presented as mean ± SEM. **P < 0.01, ***P < 0.001 by Mann-Whitney U test.

Given the many previous reports describing, but not quantitating, endothelial cell apoptosis in SSc, we explored the origin of apoptotic cells in SSc tissues to provide a comprehensive tissue-based analysis and determine if endothelial cells were, in fact, prominent targets of apoptosis in this disease. We first costained for cCasp-3 and markers of major immune cell lineages and found that the majority of apoptotic cells did not express CD19, CD3, and CD68, indicating that very few macrophages and lymphoid cells undergo apoptosis in SSc skin (Figure 4D). Because observations such as nailfold capillary obliteration, digital ulceration, and renal crisis are all frequently associated with the vasculopathy of SSc but distinctly absent in the context of IgG4-RD, we used the latter disease as a source of control tissue samples to assess the preferential targeting of endothelial cells to undergo apoptosis in ex vivo tissue samples. Consistent with previous reports, we observed a striking and significant increase in the proportion of apoptotic cells accounted for by dying endothelial cells in SSc (Figure 5, A and B, and Supplemental Figure 5A). In some cases, more than 50% of all apoptotic cells in SSc tissues were of endothelial origin (Figure 5B). In addition, infiltrating CD4⁺ CTLs were often observed enveloping endothelial cells (Figure 5C and Supplemental Figure 5B), with some of these associated endothelial cells undergoing apoptosis with GZMA visible within the cytosol, suggesting that endothelial cells may represent targets of CD4⁺ CTL–directed cytotoxicity (Figure 5D).

Figure 5

Endothelial cells expressing HLA class II are a frequent target of apoptosis in SSc tissues. (A) Representative multicolor immunofluorescence images showing CD31-expressing endothelial cells (orange) with cCasp-3 staining (green) in SSc. (B) Relative proportions of apoptotic cCasp-3⁺endothelial cells (red) and nonendothelial apoptotic cells (green) in SSc tissues (n = 35). (C) CD4⁺ (red) and GZMA⁺ (purple) CD4⁺ CTLs accumulate in the vicinity of CD31⁺ (orange) endothelial cells in SSc tissues. (D) Representative multicolor immunofluorescence image showing a GZMA-expressing (purple) CD4⁺ CTL (white arrows) in close proximity to a cCasp-3⁺ endothelial cell (yellow arrow). Red arrow highlights GZMA visible within the apoptotic endothelial cell. (E) Percentages of HLA⁺ cells among CD31⁺ cells in SSc (n = 35) and control skin (n = 10). (F) Multicolor immunofluorescence images of cCasp-3⁺ (green) and HLA-DR⁺ (red) endothelial cells (orange and indicated by arrows) in SSc, but not in control skin. Data are presented as mean ± SEM. *P < 0.05 by Mann-Whitney U test.

Because CD4⁺ CTLs mediate cell death in an HLA class II–restricted manner, we wondered if the endothelial cells in SSc may have upregulated HLA class II, permitting their recognition by HLA class II–restricted TCRs on CD4⁺ CTLs (38). We found a significant increase in HLA-DR expression on endothelial cells in SSc tissues compared with their counterparts in healthy control skin (Figure 5E). Some of the endothelial cells expressing HLA-DR were observed to contain cCasp-3, indirectly suggesting that antigen presentation by HLA class II, and possibly interactions with antigen-specific CD4⁺ CTLs, may have contributed to their apoptotic death (Figure 5F and Supplemental Figure 5C). The relative efficiency with which we have detected apoptotic cells — which are generally cleared rapidly by macrophages — may in part be explained by the relative paucity of macrophages in SSc tissues, as seen in Supplemental Figure 6.

Analyses of CD4⁺ CTL heterogeneity define a specific subset relevant to SSc. To further characterize CD4⁺ CTLs in the disease-specific context of SSc, we used blood samples from 2 different cohorts of SSc patients, including 14 from whom paired skin tissue samples were available and were included in the above tissue studies. Using our previous studies in IgG4-RD as a framework, we examined the phenotype of CD4⁺SLAMF7⁺ effector memory T (Tem) cells based on surface CD28 and CD57 expression (26). CD28 is a costimulatory receptor that is downregulated upon serial antigen recognition by the TCR (39) and CD57 is a poorly understood sulfated glyco-epitope that has been associated with both T cell senescence and cytotoxicity (40, 41). We found a large proportion of CD4⁺ CTLs to have gained CD57 expression, with or without having lost CD28 expression (Supplemental Figure 7A). CD57-expressing CD4⁺ CTLs were expanded in the blood of SSc patients, with over 50% of the subjects demonstrating numbers above the vast majority of age-matched healthy donors (Figure 6A). We identified a trend toward significant correlation between these circulating cells and the presence of interstitial lung disease, and this provided some support for a pathologic role for CD57^hiCD4⁺ CTLs (Figure 6B). Moreover, from the subjects with paired blood and tissue samples, we observed circulating CD57^hiCD4⁺ CTLs to positively correlate with the extent of activated myofibroblasts within the paired skin samples (Figure 6C). Analyzing the SSc subjects with increased circulating CD57^hiCD4⁺ CTLs compared to those with normal levels, we found a correlation with increasing age (Supplemental Figure 7B) but no correlation with gender, disease duration, auto-antibody profile, modified Rodnan skin score, the presence of digital ulceration, or the presence of renal crisis.

Figure 6

Effector CD4⁺ CTLs are clonally expanded and correlate with tissue fibrosis in SSc. (A) Dot plot demonstrates marked expansion of CD57^hiCD4⁺ CTLs comparing SSc subjects (n = 37) to age-matched healthy donors (n = 20). Lines represent medians with standard deviation. Mann-Whitney U test was used to calculate P value. (B) Bar chart showing increased frequency of lung fibrosis among SSc patients with greater CD57^hiCD4⁺ CTL expansions. Proportion of patients in each group is plotted. P value was calculated by Fisher’s exact test. (C) X-Y plot showing positive correlation between CD57^hiCD4⁺ CTL expansion and tissue α-smooth muscle actin (α-SMA) staining. Linear regression was used to calculate P value. (D) Scatter plots with mean and range displaying the percentage of each T cell subset expressing granzyme B (GZMB), perforin (PRF), CX3CR1, and CD127. (E) Dot plots show the TCR repertoire comprising effector CD4⁺ CTLs from 2 SSc subjects (middle and right). TCR repertoire from a naive CD4⁺ T cell population is shown for reference (far left).

Because CD57^hiCD4⁺ CTLs were composed of both CD28^hi and CD28^lo cells, and the CD28^hiCD57^lo subset of CD4⁺ CTLs most often dominated the composition of CD4⁺ CTLs from healthy donors (Supplemental Figure 7A), we further phenotyped these respective subsets by additional surface and intracellular flow cytometry studies. Examining various effector molecules of cytotoxicity including GZMA, granzyme B (GZMB), and perforin (PRF), we found the CD28^hiCD57^loCD4⁺ CTLs to most closely resemble naive CD4⁺ T cells, CD28^loCD57^hiCD4⁺ CTLs to most closely resemble CD8⁺ CTLs, and CD28^hiCD57^hiCD4⁺ CTLs to have an intermediate phenotype (Figure 6D and Supplemental Figure 7C). Consistent with the idea of progressive differentiation from a precursor to an effector phenotype of CD4⁺ CTLs, the CD28^loCD57^hi subset expressed the greatest amount of CX3CR1, a marker previously associated with effector CD4⁺ CTLs and protective antiviral immunity, whereas the CD28^hiCD57^lo subset expressed the greatest amount of CD127 (IL-7R), which was previously reported as a surface marker of precursor CD4⁺ CTLs (Figure 6D and refs. 34, 42). Focusing on the CD4⁺ CTL subset with the strongest effector phenotype, we performed TCR repertoire analysis on CD28^loCD57^hiCD4⁺ CTLs sorted from the blood of SSc patients and observed marked clonal expansion of effector CD4⁺ CTLs compared with their naive CD4⁺ T cell counterparts, with 1 to 2 clones dominating the TCR repertoire and representing 50% to 75% of all sequence reads (Figure 6E).

The transcriptome of CD28^loCD57^hiCD4⁺ CTLs is enriched by genes relevant to cytotoxicity, metabolic activity, and tissue remodeling. Following the above observations supporting the notion that CD4⁺SLAMF7⁺ Tem cells that have lost CD28 and gained CD57 expression represent the most differentiated effector subset of CD4⁺ CTLs, we sought to characterize the transcriptional features of this cell population in order to make inferences about its functional role in the pathogenesis of SSc. We sorted CD4⁺ naive T cells and CD28^loCD57^hiCD4⁺ CTLs from the blood of 3 SSc patients and performed whole transcriptome RNA sequencing. We searched for biologically meaningful transcriptional signatures using gene set enrichment analysis and compared effector CD4⁺ CTLs to naive CD4⁺ T cells in order to have the broadest comprehension of the CD28^loCD57^hiCD4⁺ CTL transcriptome. As an exploratory analysis, we first used the CIBERSORT gene set database to suggest the cellular phenotype of the sorted CD4⁺ CTLs. In addition to gene sets available through CIBERSORT, we also included 2 curated gene sets representing the CD4⁺ CTL transcriptome based on available transcriptome data (26, 34). This validated our sorting strategy by confirming a cytotoxic phenotype of CD28^loCD57^hiCD4⁺ CTLs, which are transcriptionally more similar to γδ T cells and CD8⁺ CTLs than to traditional CD4⁺ T cells (Figure 7A). Based on the strongest enrichment observed with the CD4⁺ CTL curated gene lists, these cells have a distinctly different transcriptional signature compared with all other cytotoxic cell types, such as γδ T cells, CD8⁺ CTLs, and NK cells, suggesting that they may play a unique biological role (Figure 7A). The cytotoxic transcriptional profile of CD28^loCD57^hiCD4⁺ CTLs includes upregulation of GZMA, GZMB, GZMH, GZMM, PRF1, GNLY, SLAMF7, CX3CR1, FGFBP2, NKG7, KLRB1, KLRD1, KLRF1, and KLRG1 (Figure 7B). Additionally, the upregulation of IL1B was observed in this CD4⁺ CTL subset, corroborating similar findings from the above tissue studies (Figure 7B).

Figure 7

CD28^loCD57^hiCD4⁺ CTLs from SSc patients have transcriptional signatures linked to cytotoxicity, fibrogenesis, and metabolic activity rather than senescence. Comparing CD28^loCD57^hiCD4⁺ CTLs to naive CD4⁺ T cells, we identified enrichment for many gene sets, including (A) alignment with previously reported CD4⁺ CTL transcriptomes and greater similarity with γδ T cell and CD8⁺ T cell transcriptomes rather than with conventional CD4⁺ T cells, and (B) those associated with fibrogenesis such as regulation of fibroblast apoptosis, regulation of endothelial cell migration and hemostasis. Size of dots represents number of genes within a given gene set. The x axes represent the percentages of genes within a gene set enriched for by the effector CD4⁺ CTL transcriptome. (C) CNETplot showing all genes upregulated by effector CD4⁺ CTLs from immune cell transcriptional gene sets showing a prominent cytotoxic profile with upregulation of GZMA, GZMB, GZMM, GZMH, PRF1, and SLAMF7. P values were calculated with the permutation method implemented in fgsea version 1.12.0.

Expanding upon our observations that CD4⁺ CTLs accumulate in both the vascular and tissue compartments of SSc patients, we curated a collection of gene sets relevant to tissue remodeling to understand if this cell population is enriched by relevant genes. These analyses revealed that gene expression in CD28^loCD57^hiCD4⁺ CTLs consistently enriched for gene sets relevant to tissue remodeling across multiple databases (Figure 7C). Expression of genes such as PLG, FGA, KLKB1, and FN1 related to hemostasis; TGFB1, TGFB3, PDGFB, and PDGFD related to fibrogenesis; and VEGFD and PDGF (the latter also relevant to fibrogenesis) related to angiogenesis suggests that this subset of CD4⁺ CTLs may play a crucial role in tissue remodeling and fibrosis (Supplemental Figure 8).

To explore biological pathways that may be relevant to CD28^loCD57^hiCD4⁺ CTLs, we examined enrichment among the Reactome gene set database. We found gene expression in CD28^loCD57^hiCD4⁺ CTLs to be linked to gene sets that suggest these cells are poised for survival (upregulated KRAS signaling, MYC target genes) and have a metabolically active phenotype (upregulated mTORC1, oxidative phosphorylation) (Supplemental Figure 9). We also observed transcriptomic evidence that CD28^loCD57^hiCD4⁺ CTLs are conditioned by type I and type II interferons, both of which have been implicated in the pathogenesis of systemic sclerosis (43–45). Overall, these findings are consistent with the notion that CD28^loCD57^hiCD4⁺ CTLs represent an activated effector population of CD4⁺ T cells involved in the ongoing immune response at the time of sample collection rather than a resting memory or exhausted T cell population.

Ongoing T cell activation may be a feature of early diffuse SSc. CTLA4-Ig (abatacept) has the ability to block the interaction of CD28 on naive T cells with CD80 and CD86 on antigen-presenting cells. The above blood studies from SSc patient samples suggest the progressive differentiation of CD4⁺ CTLs from a precursor population, to an intermediate subset marked by the gain of CD57 expression, and finally to a fully differentiated effector subset that has gained CD57 and lost CD28 expression. In addition to these two CD28-expressing CD4⁺ CTL subsets that may give rise to CD28^loCD57^hiCD4⁺ CTLs, effector T cells are likely being generated frequently in lymph nodes from naive or memory CD28-expressing T cells in the setting of ongoing disease activity following the presentation of self-antigens that have been captured by dendritic cells. In this context, it is plausible that CTLA4-Ig treatment may block the differentiation of naive CD4⁺ T cells, memory CD4⁺ T cells, and precursor subsets of CD4⁺ CTLs into bona fide effector CD4⁺ CTLs through interference with costimulation. To explore this, we examined pre- and posttreatment skin biopsies of 4 patients with early diffuse SSc who were enrolled in the ASSET trial examining the efficacy of CTLA4-Ig in SSc (46). We noted a discernible decline in tissue-infiltrating CD4⁺ CTLs in 3 of the 4 patients (Supplemental Figure 10). Ongoing T cell activation appears to be a feature of early diffuse SSc and there is therefore a rationale for targeting patients early in this disease with interventions that prevent T cell activation or attenuate T cell cytotoxicity.

Using quantitative approaches to examine a range of infiltrating cells we have identified GZMA-expressing CD8⁺ T cells and CD4⁺ CTLs as the most prominent T cells in SSc lesions. Quantitative analyses of immune cells in SSc tissues have not been undertaken previously, and our findings have attempted to elucidate the relevance of T cells, including several CD4⁺ T cell subsets, in this disease. Th2 and Tfh cells were found to infiltrate tissues only in low numbers in our studies. In contrast, CD4⁺ CTLs infiltrate SSc skin in high numbers, with expansions seen in nearly 80% of cases when compared with healthy donor tissues. In some subjects, an increase in Th17 cells was noted, but even in these biopsies the majority of infiltrating T cells are cells with the potential for cytotoxicity when considering both CD4⁺ CTLs and CD8⁺ T cells.

Apart from inducing apoptosis, CD4⁺ CTLs cells are known to secrete profibrotic as well as proinflammatory cytokines, including TGF-β and IL-1β. These cytokines may directly contribute to local tissue remodeling processes (26, 27). We observed the expression of IL-1β in CD4⁺ CTLs at the site of disease in SSc tissues, supporting a proinflammatory and/or profibrotic function of these cells in addition to a cytotoxic one.

Our current studies have identified a large number of apoptotic cells within the tissues of patients with SSc, concomitant with the accumulation of both CD8⁺ CTLs and CD4⁺ CTLs, indirectly implicating these cytotoxic T cells in the targeted killing of host cells (26). We quantified the number of apoptotic cells in samples from patients, finding median values of approximately 100 cCasp-3⁺ cells per mm² in SSc compared with control tissues, which had fewer than 15 apoptotic cells per mm². Consistent with the prominent vasculopathy that precedes and then progresses concurrently with tissue fibrosis in SSc, we found endothelial cells to be a frequent target of apoptosis in SSc biopsies. Moreover, many endothelial cells in the SSc skin samples expressed HLA class II molecules. Collectively, these findings support the view that CD4⁺ CTLs and CD8⁺ T cells in SSc may contribute to vasculopathy and tissue fibrosis by targeted endothelial cell killing and by the elaboration of proinflammatory molecules such as IL-1β, leading to overly exuberant tissue remodeling.

Apoptosis of endothelial cells in SSc tissues has been noted for decades (47). Although anti–endothelial cell antibodies capable of inducing apoptosis of endothelial cells have been frequently reported, tissue studies precisely cataloguing the cell types undergoing apoptosis, or quantifying apoptotic cells have not previously been undertaken (48–52). We have observed that endothelial cells undergoing apoptosis are often in close proximity to cytotoxic T cells and sometimes can even be seen to have acquired GZMA in the cytosol. Future studies involving multicolor confocal microscopy on thick frozen sections of SSc biopsies and the use of cell distance mapping may provide further correlations about the potential physical interactions between cytotoxic T cells and endothelial cells in this disease.

The definitive identification of self-antigens that are recognized by expanded T cell clones that infiltrate tissues in SSc patients would strengthen the view that self-reactive T cells drive this disease process. It is likely that certain relevant host proteins expressed at relatively high levels in endothelial cells contribute peptides that are presented on HLA class I molecules and that a distinct or overlapping subset of proteins yields peptides that are presented by HLA class II molecules. These antigens may come into play following a break in peripheral T cell tolerance and they presumably initiate immune responses in draining lymph nodes. Activated effector CD4⁺ and CD8⁺ cytotoxic T cells may then target host cells, particularly endothelial cells, in SSc tissues. The centromeric CENP-A and CENP-B proteins and the interferon-inducible 16 protein (IFI-16), known antigens recognized by auto-antibodies in SSc, have been found to be expressed at relatively high levels in endothelial cells (53). Whether or not peptides from these antigens are presented on HLA molecules for T cell recognition and thus contribute to T cell–mediated endothelial cell apoptosis remains to be established.

Our studies quantitatively establish that the accumulation in the skin of CD4⁺ CTLs and CD8⁺ CTLs is a hallmark of early diffuse Ssc and suggest that similar quantitative tissue studies should be undertaken in other inflammatory diseases of the skin, including disorders in which fibrosis is not a dominant feature. We have previously noted that CD4⁺ CTLs accumulate in affected tissues in another fibrotic disease, IgG4-RD, but not in 2 nonfibrotic disorders, chronic sialadenitis and Sjögren’s syndrome (26, 27). Although our results provide a potential mechanism for the long-described phenomenon of endothelial cell apoptosis in this disease, we also note that there is a general increase in apoptosis even in nonendothelial cells in SSc biopsies in comparison with normal skin. Although fibrosis is generally considered to be linked to inflammatory cytokines, apoptotic cells have been shown to trigger TAM family kinases on macrophages and thus accelerate wound healing (54). Apoptotic death in the lung resulting from germline mutations has also been postulated to contribute to the fibrotic process in idiopathic pulmonary fibrosis (55). Our data support the view that cytotoxic T cells may contribute to a fibrotic disease by both inducing apoptosis and secreting profibrotic cytokines. An overview model for the pathogenesis of SSc based on our observations is presented in Figure 8.

Figure 8

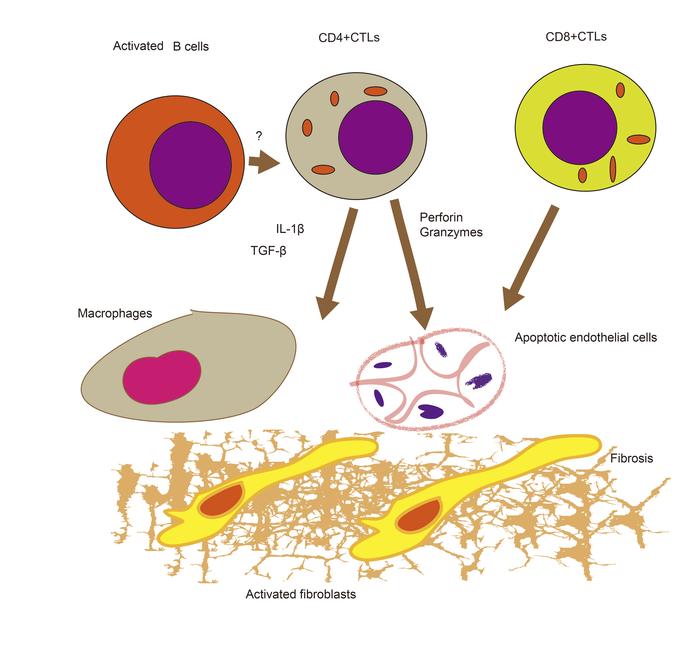

Schematic model for the pathogenesis of SSc. Infiltration of inflamed tissues by CD4⁺ CTLs and CD8⁺ CTLs and the apoptosis of endothelial cells may contribute to this disease. Reactivation of CD4⁺ CTLs may require antigen presentation by activated B cells in tissue sites. Cell apoptosis and macrophage and fibroblast activation by cytokines secreted by cytotoxic T cells may together contribute to fibrosis.

It is likely that in active SSc, there is ongoing presentation of antigen to naive CD4⁺ and CD8⁺ T cells and the recurrent activation of these cells in secondary lymphoid organs. The decline in CD4⁺ CTLs after treatment with CTLA-Ig is consistent with such a view. It is therefore likely that interventions targeting cytotoxic T cells early in this disease may potentially halt the progression of this therapeutically intractable disease.

Patient cohorts

Skin tissue (n = 35) and blood (n = 28) samples from SSc subjects and skin tissue samples from healthy donors (n = 10) were obtained through a collaboration with the NIH-funded Autoimmune Center for Excellence at the University of Michigan. In addition, skin tissue samples from patients with bullous pemphigoid (n = 7) were obtained from the Department of Dermatology at the University of Pennsylvania. Twenty-six of 28 blood samples were from patients with early diffuse SSc, whereas 1 had a limited phenotype and 1 was subsequently found to have scleroderma. Eighteen of these 28 blood samples and all tissue samples were collected from patients who were enrolled in ASSET, a placebo-controlled trial of abatacept versus placebo in patients with early dcSSc (45). All 28 blood samples and 35 skin tissue samples were obtained before the start of any immunosuppressive treatment. An additional 9 SSc subjects were recruited for blood sampling through the Massachusetts General Hospital Division of Rheumatology. Three of these 9 subjects had diffuse skin involvement and 6 were of the limited phenotype. Seven of these patients were not on any immunosuppression before sample collection, while the other 2 were on some form of treatment (1 on azathioprine 125 mg daily and the other on leflunomide 20 mg daily). Age-matched healthy donors (n = 20) were obtained through the Massachusetts General Hospital Division of Rheumatology. Healthy donors were defined by lacking any current or prior history of malignancy, autoimmune disease, or recurrent/chronic infections. Data such as sex, age, treatment status, disease activity, clinical manifestations, and laboratory parameters were extracted from the medical records of all patients used for these studies and are displayed in Supplemental Table 1. PBMCs were isolated by Ficoll within 4 hours of phlebotomy and preserved in liquid nitrogen until the time of use.

Flow cytometry

Frozen PBMCs were thawed and washed in complete DMEM. Before antibody staining, Fc receptors were blocked using Human TruStain FcX (BioLegend, 422302) at a dilution of 1:20 on ice for 15 minutes. Cells were stained for 20 minutes on ice, protected from light, at a concentration of 20 million cells/mL using the following antibody panel (manufacturer, clone, concentration used): anti–human CD3-BUV395 (BD Biosciences, clone SK7, 1:40), anti–human CD57-PE (BD Biosciences, clone NK-1, 1:400), anti–human CD8-BV785 (BioLegend, clone SK1, 1:300), anti–human CD45RA-BV605 (BioLegend, clone HI100, 1:300), anti-CD4-BUV805 (BD Biosciences, clone SK3, 1:80), anti–human CD28-BV480 (BD Biosciences, clone CD28.2, 1:40), anti–human CCR7-APC/Cy7 (BioLegend, clone G043H7, 1:20), and anti–human SLAMF7-A648 (BD Biosciences, clone 235614, 1:10). Cells were washed with 1% BSA in PBS after staining, centrifuged, and resuspended in 1% BSA in PBS. Just before flow cytometry, dead cells were stained with SYTOX AADvanced Dead Cell Stain (Thermo Fisher Scientific, S10274). The following antibodies were used for intracellular flow cytometry studies: anti–human GZMA-PE/Cy7 (BioLegend, clone CB9, 1:10), anti–human GZMB-BV421 (BD Biosciences, clone GB11, 1:25), anti–human GZMK-FITC (BioLegend, clone GM26E7, 1:25), and anti–human PRF-BV711 (BioLegend, clone dG9, 1:25). Anti–human CX3CR1-BV650 (BioLegend, clone 2A9-1, 1:25) was also used for extracellular staining before intracellular staining. Cells were fixed and permeabilized using the fixation/permeabilization solution kit from BD Biosciences (catalog 554714) according to the manufacturer’s protocol. Flow cytometry was performed on a BD LSR II (BD Biosciences) and rainbow tracking beads were used to ensure consistent signals between flow cytometry batches. FCS files were analyzed using FlowJo software (version 10).

Multicolor immunofluorescence staining

Tissue samples were fixed in formalin, embedded in paraffin, and sectioned. These specimens were incubated with the following antibodies: anti-CD3 (catalog A045229-2, DAKO), anti-CD4 (catalog CM153A, Biocare), anti-CD19 (catalog CM310 A, B; Biocare), CD8 (catalog ab85792, Abcam), CD31 (catalog 3528; Cell Signaling Technology), CD68 (catalog ab955, Abcam), cleaved caspase-3 (catalog 9664, Cell Signaling Technology), GATA3 (catalog CM405A, Biocare), GZMA (catalog LS-C312742, LSBio), RORγ (catalog ab212496, Abcam), CXCR5 (catalog MAB190, R&D Systems), Foxp3 (catalog 98377, Cell Signaling Technology), HLA-DR (catalog ab20181, Abcam), IL-1β (catalog MAB201, R&D Systems), and SLAMF7 (catalog HPA055945, Sigma-Aldrich) followed by incubation with secondary antibody using an Opal Multiplex Kit (PerkinElmer). The samples were mounted with ProLong Diamond Antifade mountant containing DAPI (Invitrogen). In the analysis of apoptotic endothelial cells, we included only the tissue samples with sufficient numbers of apoptotic cells present. Relevant control tissues (healthy control skin for SSc) were used to determine sufficient apoptotic cell numbers based on the control median + 1 SD. α-Smooth muscle actin (α-SMA) tissue staining was performed, analyzed, and scored using a 10-cm visual analog scale, as previously described (56).

Microscopy and quantitative image analysis

Images of the tissue specimens were acquired using the TissueFAXS platform (TissueGnostics). For quantitative analysis, the entire area of the tissue was acquired as digital grayscale images in 5 channels with filter settings for FITC, Cy3, Cy5, and AF75 in addition to DAPI. Cells of a given phenotype were identified and quantitated using the TissueQuest software (TissueGnostics), with cutoff values determined relative to the positive controls. This microscopy-based multicolor tissue cytometry software permits multicolor analysis of single cells within tissue sections similarly to flow cytometry. The principle of the method and the algorithms used have been described in detail elsewhere (57). Myofibroblast activation was graded within tissues by the α-SMA score, as previously described (56).

FACS isolation, bulk RNA sequencing, and TCR repertoire studies

FACS isolation. Frozen PBMCs were thawed, washed, and stained with the same antibody panel as used for flow cytometry experiments, detailed above. Consistent with our flow cytometry studies, effector CD4⁺ CTLs were sorted based on the following gates: CD3⁺, CD4⁺, CD8^–, CCR7^–, CD45RA^–, SLAMF7⁺, CD28^lo, and CD57^hi. CD4⁺ naive T cells were sorted based on the following gates: CD3⁺, CD4⁺, CD8^–, CCR7⁺, and CD45RA⁺. Cells were sorted directly into 350 μL RLT-BME lysis buffer, vortexed briefly, and immediately frozen on dry ice. Cells were sorted on a BD FACSAria II with FACSDiva version 7. RNA was isolated from sorted cell lysates using RNeasy Plus Micro Kits (Qiagen, 74034). For bulk RNA sequencing, isolated RNA was immediately processed through RT-PCR, as previously described (58). For TCR repertoire, isolated RNA was immediately processed through 5′RACE RT-PCR, as previously described (59, 60). Sequence data were deposited into the NCBI’s Gene Expression Omnibus (GEO) repository with accession number GSE142663.

Bulk RNA sequencing. Raw FASTA files (read 1 and read 2) were processed with the zUMIs v2.2 pipeline using the splice-aware aligner STAR v2.5.4a, SAMtools v1.9, and pigz v2.3.4 (61). In short, reads were filtered according a predefined list matching the custom-made well barcodes in the oligo-dTs and unique molecular identifiers were then collapsed. The remaining reads were mapped to the reference genome with the use of STAR aligner. Exon counts from mapped reads were imported into R studio v1.1.456 and further processed for statistical analysis with DESeq2 v1.22.1. Because we compared multiple cellular subtypes per patient, we controlled for between-patient variability in the design matrix. Fitting of the models’ dispersion to the mean intensity was performed with local regression and the effect sizes were calculated with the postcounts estimator in DESeq. Dispersion plot fits were visually validated for goodness of fit. We performed pairwise comparison between cell subtypes of interest and the per-gene P values were adjusted for multiple testing by Benjamini-Hochberg (BH) false discovery rate (FDR). Gene-set enrichment analysis was done with the GSEABase package v1.44.0 (fgsea algorithm) with 10,000 permutations, gene-set size between 5 and 2,000, and a BH-FDR–adjusted P value cutoff of 0.25. Gene-set lists were downloaded from the MSigDB v6.2 at the Broad Institute of MIT & Harvard and included gene sets from the GO, KEGG, BioCarta, Reactome, and Hallmark databases. Custom gene sets were created by extraction of the cell-type-specific gene expression signatures from Stanford’s CIBERSORT tool and previous studies describing gene expression signatures on CD4⁺ CTLs (26, 34, 62).

TCR repertoire analysis. Processed files were imported in VDJtools v1.1.4 for statistical analysis. Basic V-J usage per cell type was analyzed by computing read frequencies. Clonotype abundances were calculated by CDR3 nucleotide, V and J matching among CD4⁺ CTLs.

Statistics

Flow cytometry, clinical correlations, and tissue studies. GraphPad Prism version 8 was used for statistical analysis, curve fitting, and linear regression. A 2-tailed Mann-Whitney U test was used to calculate P values for continuous, nonparametric variables. For categorical variables, Fisher’s exact test was used to calculate P values. For comparing more than 1 population, Kruskal-Wallis testing was used with Dunn’s multiple-comparisons testing. Pearson’s correlation coefficient was used to quantify the strength of linear relationship between variables. A P value of less than 0.05 was considered significant.

Study approval

These studies were approved by the Institutional Review Boards at the Massachusetts General Hospital, University of Michigan Medical Center, Hospital of the University of Pennsylvania, and Kyushu University Hospital. All patients provided written informed consent before inclusion in the study.
