Endocochlear potential contributes to hair cell death in TMPRSS3 hearing loss

For the majority of genes associated with hearing loss (HL), the underlying pathologic mechanism is not known. Determining the precise molecular mechanism underlying each form of genetic HL is critical for development of new treatment modalities, which currently are limited to hearing aids and cochlear implants but in the near future may include correction of underlying pathology with molecular or gene therapies. One gene for which the underlying disease mechanism is still elusive is TMPRSS3.

Biallelic pathogenic variants in TMPRSS3 cause 2 forms of sensorineural HL: early-onset severe to profound HL (DFNB10) and postlingual, progressive, high-frequency HL (DFNB8) (1). TMPRSS3 is commonly implicated as a cause of human HL (2). We and others have previously shown that, unlike other forms of genetic HL, TMPRSS3-related HL is associated with variable speech perception outcomes after cochlear implantation in adults and is correlated with duration of deafness, possibly due to reduced spiral ganglion neuron (SGN) function (3–5). In contrast, in children with TMPRSS3-related HL, cochlear implant outcomes are more positive (6). Given its relatively substantial contribution to genetic HL and the variable cochlear implant outcomes associated with TMPRSS3-related HL, determination of the function of TMPRSS3 and how its dysfunction results in HL is critical for a comprehensive understanding of DFNB8/10.

The TMPRSS3 gene encodes the transmembrane serine protease III protein, a widely expressed protein with multiple tissue-specific isoforms (7). To date, there are more than 70 reported pathogenic HL-associated variants in TMPRSS3 (8, 9). In the inner ear, TMPRSS3 is expressed in inner hair cells (IHCs), outer hair cells (OHCs), and in type II, but not type I, SGNs (7, 10, 11). The previously developed Tmprss3-null mouse model (Tmprss3^Y260X/Y260X) shows rapid degeneration of cochlear hair cells (HCs) beginning at the onset of hearing at P12, leading to compete loss of HCs by P14 and resulting in profound deafness (7, 11). HCs s develop normally, but they quickly undergo cell death at the onset of hearing, a unique pathology compared with other forms of genetic HL.

The mechanism for HC death at the onset of hearing in Tmprss3^Y260X/Y260X mice is not understood. However, due to the coincident timing of normal development of the endocochlear potential (EP) (12) and rapid HC degeneration in Tmprss3^Y260X/Y260X mice, we hypothesized that EP may play a role in HC loss and subsequent deafness in Tmprss3^Y260X/Y260X mice. The apical surface of cochlear HCs is bathed in endolymph, which is high in extracellular K⁺ and provides the +90 mV EP. Interestingly, the period at which massive HC death occurs in Tmprss3^Y260X/Y260X mice coincides with development of the EP, because there is a rapid increase from +16 mV to +60 mV, reaching the mature +90 mV by P15 (12). The EP is generated by the cells of the stria vascularis and provides a steep electrochemical gradient that drives sensory transduction current into HCs, carried primarily by K⁺ and Ca²⁺ (13). One route for K⁺ efflux from HCs is via big potassium (BK) channels, which are large-conductance, calcium-activated K⁺ channels. KCNMA1 is the gene that produces the pore-forming α subunit of BK channels, which localize on the neck of mature IHCs (11, 14). Normally, Kcnma1 is first expressed at P12; however, KCNMA1 channels are not detected in IHCs of Tmprss3^Y260X/Y260X mice (11, 15). Interestingly, KCNMA1-null mice have normal hearing at 4 weeks of age and develop a mild, progressive, high-frequency HL based on alterations of OHC function (16). Based upon the temporal correlation between rapid HC death with EP maturation, along with alterations in HC K⁺ channel expression, we hypothesize that alterations of EP contribute to HC death and HL in Tmprss3^Y260X/Y260X mice.

Here, we investigated this hypothesis by modifying the intracochlear environment and assessing effects on HC survival in Tmprss3^Y260X/Y260X mice both in vitro, using a cochlear explant model, and in vivo, crossing Tmprss3^Y260X/Y260X mice with 2 mouse strains that lack development of EP. We also measured EP directly in Tmprss3^Y260X/Y260X mice and show that EP aberration is associated with the rapid HC death and HL in these mice. In addition, pharmacologic reduction of the EP with systemic administration of furosemide led to reduction in HC death, providing a new possible avenue for treatment of this common cause of human HL.

HCs show normal early development and function in Tmprss3^Y260X/Y260X mice. We evaluated the morphology and function of HCs in early stages of postnatal development in Tmprss3^Y260X/Y260X mice prior to the onset of hearing and before the previously identified rapid and complete HC degeneration of IHCs and OHCs from P12 to P14. At P6, the HCs showed typical stereocilia morphology and cellular arrangement via phalloidin immunostaining (Figure 1A). The hair bundle ultrastructure of Tmprss3^Y260X/Y260X mice is indistinguishable from that of heterozygous and wild-type littermates. Mechanosensory transduction currents in mouse HCs are detected at P0 at the base and reach mature levels between P5 and P10 in a tonotopic gradient from base to apex (17, 18). We noted typical HC uptake of FM1-43, a styryl dye that specifically labels HCs via uptake through functional sensory transduction channels, at P7 (Figure 1B). Consistent with prior reports, we found that Tmprss3^Y260X/Y260X IHCs and OHCs undergo rapid and complete degeneration by P14 (Figure 1A). These data indicate normal early development and function of HCs in Tmprss3^Y260X/Y260X mice prior to rapid degeneration.

Figure 1

Tmprss3^Y260X/Y260X mice demonstrate normal HC and stereocilia morphology and physiology prior to rapid-onset degeneration. (A) Phalloidin immunostaining and scanning electron microscopy (SEM) show normal architecture of IHCs and OHCs at P6 and P14 in wild-type mice and complete HC degeneration at P14 in Tmprss3^Y260X/Y260X mice. Scale bars: 10 μm (P7), 20 μm (P14). (B) FM1-43 uptake by HCs in Tmprss3^Y260X/Y260X mice is equivalent to that of wild-type mice at P7. Scale bars: 20 μm.

SGN patterning is normal at early stages in Tmprss3^Y260X/Y260X mice. SGNs innervate IHCs and OHCs and consist of type I and type II SGNs. Type I SGNs compose 95% of SGNs, transmit sound information from the IHCs to the central nervous system, and consist of 3 unique subtypes (IA, IB, and IC) based upon single cell transcriptomic profiling (10, 19) and spontaneous firing rates (20). Type II SGNs make up the remaining 5% of the SGN population, synapse on multiple OHCs, and are not essential for sound transmission; instead, they are likely involved in damage perception (21). SGNs undergo major refinement in molecular phenotype in the first few postnatal weeks (19). Proper segregation of type I and type II SGNs and subtype specification of type I SGNs is dependent upon the spontaneous activity of HCs and functional sensory transduction prior to the onset of hearing (19). Genetically engineered mice with defective synaptic transmission or sensory transduction have severe alterations in the type 1 SGN subtyping (19). TMPRSS3 expression is not detected in type I SGNs and is limited to only type II SGNs (10). To test if loss of TMPRSS3 affected SGN function, we profiled the composition of SGNs in Tmprss3^Y260X/Y260X mice at early time points (Figure 2). The total number of Tuj1-positive SGNs was no different between Tmprss3^Y260X/Y260X and control mice (Supplemental Figure 1; supplemental material available online with this article; https://doi.org/10.1172/JCI186395DS1). Staining with antibodies specific for type IA (calretinin), type IB (calbindin), type IC (BRN3A), and type II (nerve growth factor receptor [NGFR] SGNs revealed identical subtype composition between the control mice (Tmprss3^Y260X/+) and Tmprss3^Y260X/Y260X mice at P11 (Figure 2, A and B). Despite HC degeneration by P14 in Tmprss3^Y260X/Y260X mice, no significant differences in type I SGNs were observed at P21. The type II SGNs were slightly, though significantly, decreased in Tmprss3^Y260X/Y260X mice at P21. These data demonstrate that loss of expression of TMPRSS3 does not affect activity-dependent subtype patterning of type 1 SGNs and provides further support for the indication that loss of TMPRSS3 does not disrupt HC transduction, which is critical to IHC development.

Figure 2

Spiral ganglion subtype composition is normal in Tmprss3^Y260X/Y260X mice, aside from type II SGN increase. (A) Representative sections of spiral ganglion taken at P11 stained for neuron-specific class III β-tubulin (TuJ1) and antibodies specific for type IA SGNs (calretinin), type IB SGNs (calbindin), type IC SGNs (POU4F1, BRN3A), and type II SGNs (NGFR). Top row shows TuJ1 channel, middle row shows SGN subtype-specific channel, and the bottom row shows merged channels. Arrows indicate costaining; arrowheads indicate negative costaining. Scale bars: 20 μm. (B) Counted subtype-specific neurons at P11 and P21 for Tmprss3^Y260X/Y260X and wild-type mice show no difference aside from increased type II SGNs in wild-type mice at P21. Each point represents cell count from 1 cochlea (n = 3 cochleae per genotype and day).

HC death in Tmprss3^Y260X/Y260X mice is mediated by the intracochlear environment. The endolymph within the scala media comprises extracellular fluid containing 157 mM K⁺ that is dependent on the KCNJ10 channel of the lateral wall of the cochlea (22). The positive EP within the scala media of 80–100 mV is generated by the stria vascularis and reaches peak levels at P14 at the onset of hearing (23).

We had previously shown that inner ear organoids derived from stem cells of Tmprss3^Y260X/Y260X mice are morphologically and functionally identical to wild-type inner ear organoids and do not undergo the same rapid degeneration seen in vivo (24). Based on prior observations of sudden IHC and OHC death in Tmprss3^Y260X/Y260X mice between P12 and P14 (11, 15), we hypothesized that the extracellular environment — the EP, in particular — may contribute to the early rapid HC death in Tmprss3^Y260X/Y260X mice. To test this hypothesis and investigate if altering the extracellular environment could prevent HC death, we performed cochlear explant cultures. Mouse cochleae were microdissected at P7 and the sensory epithelium was placed in explant culture media for an additional 7 days in vitro (DIV). We observed complete preservation of HCs in the Tmprss3^Y260X/Y260X mice (Figure 3).

Figure 3

Cochlear explant cultures implicate intracochlear environment in HC death in Tmprss3^Y260X/Y260X mice. Representative images of cochlear explant cultures from control (Tmprss3^Y260X/+) (A and B) and Tmprss3^Y260X/Y260X (E and F) mice. Tmprss3^Y260X/Y260X explant at P14 equivalent (P7 explant + 7 days in vitro [DIV]) demonstrates no HC degeneration of either IHCs or OHCs, which is maintained to P30 explant (C and G). Tmprss3^Y260X/Y260X mice display near complete HC degeneration at P14 in vivo (D and H). Scale bar: 20 μm. (I and J) Quantification of IHCs and OHCs in explant culture for control and Tmprss3^Y260X/Y260X mice demonstrating slowly progressive OHC loss in both. There was no significant difference in cell counts up to 30 DIV (D30) (P > 0.11 in all cases). Each point represents the cell count from 1 culture. Exact Wilcoxon rank-sum test (Mann-Whitney U test) was used to compare 2 groups (Tmprss3^Y260X/+ and Tmprss3^Y260X/Y260X) in each culture age. Up to 5 cultures were quantified for each day, but only 2 cultures were available for D30 control (see Supporting Data Values for full details).

To determine the length of survival in culture, we cultured P7 Tmprss3^Y260X/Y260X explants for up to 30 days (Figure 3, A–I). Although we observed some loss of OHCs with progressively longer culture times, there was no statistically significant difference in HC survival between Tmprss3^Y260X/Y260X explants and control Tmprss3^Y260X/+ explants (Figure 3J; n = 3–5 cultures per condition). This supported our hypothesis that the extracochlear environment causes massive HC death in Tmprss3^Y260X/Y260X mice.

EP measurement in mouse models. Tmprss3 transcript expression is detected in the rare spindle root cells of the lateral wall and not within the major stria vascularis cells such as the marginal, intermediate, or basal cells (25). To determine if TMPRSS3 expression alters EP, we first performed EP measurement on adult mice at P28. We observed no difference in mature EP between Tmprss3^Y260X/Y260X and control mice regardless of sex (Figure 4, A and B).

Figure 4

Direct EP measurements show supraphysiologic rise in EP in Tmprss3^Y260X/Y260X mice. (A) EP was recorded through the basal turn of left cochleae in live mice ranging from P7 to P24. Representative tracing of EP recorded from the scala media of a live control mouse. (B) Direct EP recordings from P28 mice demonstrating no difference between control (n = 5) (Tmprss3^+/–) and Tmprss3^Y260X/Y260X (n = 6) mice. Open circles and squares represent female mice. Filled circles and squares represent male mice. nd, no statistical difference determined. (C) Direct EP recordings from mouse models. Each data point represents 1 reading from 1 animal and is plotted as the mean with SD. Mean EP at P12–P15 is significantly different (P < 0.0001) between Tmprss3^Y260X/Y260X and control (Tmprss3^Y260X/+) mice. Wilcoxon rank-sum test (Mann-Whitney U test) was used to compare 2 groups (control Tmprss3^Y260X/+ and experimental Tmprss3^Y260X/Y260X) in each postnatal age group (P7–11: n = 12, n = 11; P12–15: n = 15, n = 11; P18–P24: n = 10, n = 9, for control and experimental mice). (D) Schematic demonstrating time frame of HC death in Tmprss3^Y260X/Y260X mice in the context of physiologic rapid phase of EP development. Neither Pou3f4^delJ nor Mitf^Mi-wh/+ knockout mice generated EP and neither had HC degeneration despite profound HL.

Next, we sought to evaluate EP dynamics in Tmprss3^Y260X/Y260X mice during the critical period of EP development from P7 to P24. Similar to our adult measurements, we directly measured EP in live control and Tmprss3^Y260X/Y260X mice, using glass micropipettes inserted into the scala media. The EP was recorded as the voltage difference between the micropipette’s stable positions in the scala media and the scala tympani (Figure 4A).

We found that the EP was, on average, 8.9 mV higher at ages P7–P11 in Tmprss3^Y260X/Y260X mice compared with Tmprss3^Y260X/+ mice (48.9 ± 16.4 mV vs. 40.0 ± 10.0 mV, respectively) (Figure 4C). This difference was not statistically different (P = 0.26), as measured by a Wilcoxon rank-sum test (Mann-Whitney U test). The EP was 30 mV higher in Tmprss3^Y260X/Y260X mice than in controls when tested at P12–P15 (88.3 ± 8.9 mV vs. 58.2 ± 12.9 mV, respectively; P < 0.0001) (Figure 4C).

After the onset of hearing, the EP stabilized at approximately 90–95 mV at P18–P21 and was not significantly different between Tmprss3^Y260X/Y260X and control mice (89.2 ± 10.9 mV vs. 94.7 ± 5.6 mV, respectively). Thus, the premature rise in EP noted here in the Tmprss3^Y260X/Y260X mice prior to P16 occurred concurrently with previously identified complete HC degeneration. The rapid increase in EP from P10 through the onset of hearing at P14 is temporally correlated with the rapid HC degeneration between P12 and P14 seen in Tmprss3^Y260X/Y260X mice (Figure 4D). This early increase in EP may be a secondary consequence of an as-yet unidentified role of TMPRSS3 in the lateral wall, the lack of KCNMA1 expression in the Tmprss3^Y260X/Y260X HCs, or a consequence of HC degeneration.

Reduction of EP in vivo prevents HC death. To further investigate the role of the EP on TMPRSS3-mediated HC death in vivo, we crossed the Tmprss3^Y260X/Y260X line with the 2 different mutant mouse lines: Microphthalmia-White (Mitf^+/Mi-wh) and Pou3f4^delJ. Mitf^+/Mi-wh mice are a model for human deafness-pigmentation syndromes, Waardenburg syndrome type 2a, and Tietz syndrome, caused by mutations in MITF gene and characterized by profound deafness along with melanocyte deficiency. Mitf^+/Mi-wh mice carry heterozygous mutations in the Mitf gene and have profound HL and an EP that is less than 20 mV in adult mice (26, 27). Progressive OHC loss is observed in the Mitf^+/Mi-wh mice by P28 in a tonotopic gradient from base to apex (26). Pou3f4^delJ mice are a model for human X-linked nonsyndromic deafness (DFN3) caused by mutations in the gene POU3F4, which is a transcription factor. Compared with controls, Pou3f4^delJ mice have reduced EP (85 mV vs. 38 mV, respectively) (28). POU3F4 is required for generation of the EP but not for generation of cochlear HCs (28). As anticipated, we confirmed a lack of EP in the Tmprss3^Y260X/+;Mitf^+/Mi-wh mice at 1 month of age (n = 3; EP = 0 mV). Unsurprisingly, due to a complete lack of EP, these mice had profound HL as measured by auditory brainstem response (ABR) at all frequencies tested at P16 (Supplemental Figure 2).

Next, we examined the loss of EP on HC survival and, intriguingly, there was a dramatic preservation of both IHCs and OHCs in the Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh double-mutant mice (Figure 5, A and B). Although there was robust preservation of IHCs in Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh mice (Figure 5B), we observed a base-to-apex gradient of OHC loss in Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh mice that was not significantly different than Tmprss3^Y260X/+;Mitf^+/Mi-wh mice and is consistent with previously reported HC loss in the mouse line Mitf^+/Mi-wh (Figure 5B) (29). We also observed no significant progression in OHC cell death P16 to P21 (Figure 5B).

Figure 5

Rescue of cochlear HCs in Tmprss3^Y260X/Y260X mice through reduction of EP via crossing Mitf^Mi-wh/+ mice and Pou3f4^delJ mice. (A) Representative cochlear sections of Tmprss3^Y260X/Y260X (T^–/–) mice crossed with Mitf^Mi-wh/+ (M^Mi-wh/+) mice. Sections shown are cochlear apex at P16, labelled with Myo7a. (B) IHC and OHC counts per 100 μm at P16 and P21 for T^–/– and M^Mi-wh/+ crosses. Each dot represents the average of both ears for the same mouse; n = 3 mice per condition. Note loss of OHCs at P16 and P21 in M^Mi-wh/+ mouse lines. (C) Representative cochlear sections of Pou3f4^delJ (P^–/–) crosses at P48. Cross of P^–/– with T^–/– mice rescues HCs. Scale bar: 30 μm. Staining is with Myo7a (red) and phalloidin (blue). (D) IHC and OHC counts for per 100 μm at P48 for Pou3f4^delJ (P^–/–) crosses. There is no loss of OHCs noted over time in this model. n = 2 or 3 mice per condition.

To confirm this finding in an additional model that does not exhibit progressive HC loss, we generated Tmprss3^Y260X/Y260X;Pou3f4^delJ/Y (male) or Tmprss3^Y260X/Y260X;Pou3f4^delJ/delJ (female) double-mutant mice. Analysis of P48 mice revealed complete preservation of both IHCs and OHCs regardless of sex (Figure 5, C and D). Despite complete HC preservation, ABR testing of adult (P28) double-mutant mice (Tmprss3^Y260X/Y260X;Pou3f4^delJ) demonstrated profound HL, like we observe in Tmprss3^Y260X/Y260X and in Pou3f4^delJ mutant mice (Supplemental Figure 3). This hearing result is expected given the suspected low EP in double-mutant mice (Tmprss3^Y260X/Y260X;Pou3f4^delJ). Taken together, these data confirm that EP in vivo plays a major role in the pathogenesis of HC death in Tmprss3^Y260X/Y260X mice.

KCNMA1 channels are not expressed in surviving HCs. Prior proteomic analysis of cochlea from control and Tmprss3^Y260X/Y260X mice revealed reduced expression of APOA1, a KCNMA1-associated protein (11). Immunohistochemical staining demonstrated complete absence of KCNMA1 puncta near the apex of Tmprss3^Y260X/Y260X HCs at P12 prior to degeneration (11). To determine if HC survival after P14 restored expression of KCMA1, we performed antibody labelling in Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh mice. In control mice (Tmprss3^Y260X/+;Mitf^+/+), KCNMA1 expression increased from P12 to P15 in the previously reported base-apex gradient (14) (Figure 6, A and B). Conversely, although IHCs and OHCs survive due to the reduced EP in the Tmprss3^Y260X/+;Mitf^+/Mi-wh model (described earlier in Reduction of EP in vivo prevents HC death), there is complete lack of expression of KCNMA1 in the Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh mice at P15 (Figure 6, A and B). Therefore, although reduction in EP results in HC survival in Tmprss3^Y260X/Y260X mice, expression of KCNMA1 requires expression of functional TMPRSS3.

Figure 6

Reduced EP does not rescue KCNMA1 expression. (A) Representative sections from the base of P15 cochleae from control (Tmprss3^Y260X+-;Mitf^+/+) and double-mutant mice (Tmprss3^Y260X/Y260X; Mitf^Mi-wh/+) demonstrate lack of expression of the outward-rectifying K⁺-channel KCNMA1 surviving HCs that lack Tmprss3 expression. (B) Counts of KCNMA1 puncta show a base to apex gradient of expression in control mice at P12 (n = 9), P13 (n = 9), P14 (n = 6), and P15 (n = 7) and lack of KCNMA1 expression in Tmprss3^Y260X/Y260X Mitf^Mi-wh/+ mice at P12 (n = 9), P13 (n = 6), P14 (n = 7), and P15 (n = 6). Note there were no punctae for Tmprss3^Y260X/Y260X Mitf^Mi-wh/+ mice (all values were 0).

Pharmacologic reduction in EP rescues HCs in Tmprss3^Y260X/Y260X mice. Based on our results showing preservation of Tmprss3^Y260X/Y260X HCs with in vivo reduction of EP in 2 separate 2-strain mouse models, we hypothesized that pharmacologic reduction of EP would also preserve HCs in Tmprss3^Y260X/Y260X mice. Furosemide acts on the Na⁺-K⁺-2Cl^– cotransporter in the kidney to induce diuresis (29). Additionally, action of furosemide on the cotransporter in the cochlea leads to transient reduction in the EP (30). We tried varying amounts of furosemide injected intraperitoneally (50–200 mg/kg) between P10 and P14 and found that 200 mg/kg injected once daily was tolerated when saline was administered twice daily to counter expected diuresis. In a litter of 9 Tmprss3^Y260X/Y260X mice, 2 served as controls and received daily administration of saline only, and 7 were injected with 200 mg/kg furosemide daily from P10 to P14. Animals treated with the furosemide had significantly increased IHC and OHC (in apex only) survival compared with saline-treated controls (IHC: P = 0.0003 for apex, P = 0.0008 for mid, P = 0.006 for base; OHC: P = 0.009 for apex, nonparametric ANOVA with Tukey’s post hoc test) (Figure 7). In contrast, administration of 100 mg/kg/d furosemide led to minimal or no HC preservation (n = 6; data not shown). These results suggest pharmacologic reduction in EP leads to preservation of cochlear HCs that lack functional TMPRSS3.

Figure 7

Pharmacologic reduction of EP using furosemide rescues HCs. (A) Administration of 200 mg/kg furosemide once daily from P10 to P14 leads to HC survival in Tmprss3^Y260X/Y260X mice. Representative confocal images of base, middle, and apex cochlear turns of P14 Tmprss3^Y260X/Y260X-treated mice immunostained against Myo7a (green) and phalloidin (blue). (B) Mean ± SD counts of IHCs and OHCs per 100-μm section from untreated (n = 4 ears) and treated P14 Tmprss3^Y260X/Y260X (n = 7) mice measured in the base, middle, and apex cochlear turns. Each data point represents an individual cochlea. Nonparametric ANOVA with Tukey’s post hoc test for comparison of untreated versus treated IHC: P = 0.0003 for apex, P = 0.0008 for mid, P = 0.006 for base, and OHC: P = 0.009 for apex, P = 0.79 for mid, P = 0.78 for base.

The EP is integral to cochlear physiology, with its functional significance becoming especially apparent during and after the onset of auditory function. In mature mice, EP typically stabilizes within the range of +80 to +100 mV. This stabilization is critical for sustaining the large electrochemical gradient necessary for the transduction process within HCs. Genetic defects that affect the formation or maintenance of EP are associated with hearing impairment in mice and humans. In this context, our findings introduce EP abnormalities as a contributing factor to the pathologic mechanism of DFNB8/10 HL.

Our prior observation that inner-ear organoids derived from Tmprss3^Y260X/Y260X mice did not show HC degeneration indicated a possible extracellular mechanism for degeneration (24). This observation led us to explore the consequence of direct culturing of cochlear explants from control and Tmprss3^Y260X/Y260X mice. We found that, in culture, we could prevent the rapid HC degeneration that occurs between P12 and P14 in Tmprss3^Y260X/Y260X mice (Figure 3), further supporting our hypothesis that EP is an underlying contributor to the HC death.

To understand the directional effect and the magnitude of loss of Tmprss3 on EP, we measured EP from the cochleae of Tmprss3^Y260X/Y260X and control mice. Surprisingly, we observed abnormally high EP levels in the maturing cochlea of Tmprss3^Y260X/Y260X mice compared with controls (Figure 4). To date, many reported defects in EP that result in deafness are due to a reduction or failure to generate EP (31–33). Although the EP measured in the maturing cochlea of Tmprss3^Y260X/Y260X mice was significantly elevated, it was not outside the physiologically normal range for mature cochlea (>P14). These findings indicate that maturing HCs may lack the resilience required to withstand premature elevations in EP, and part of the HC maturation process entails equipping the HCs to survive in environments characterized by high ionic gradients.

Next, we asked if reducing EP in vivo through genetic manipulation could preserve HCs in the Tmprss3^Y260X/Y260X mice. EP is maintained by the stria vascularis, which is a specialized epithelial layer located on the lateral wall of the cochlear duct. This structure plays a critical role in regulating the ionic composition of the endolymph, the fluid that fills the scala media and bathes the HCs of the inner ear. The transcription factors Pou3f4 and Mitf share critical roles in influencing the function of the stria vascularis, particularly through their effects on cellular development and integrity, which are essential for EP formation and maintenance. Mutant mouse models for both genes result in significant reduction of EP (26, 28). We crossed Tmprss3^Y260X/Y260X mice with both the Mitf^+/Mi-wh mutant and the Pou3f4^delJ mutant mice. By eliminating the supraphysiologic rise in EP, we saw significant HC survival at the critical P12–P14 time point, and HC survival rates mimicked that of litter mate controls (Figure 5).

Complicating efforts to tease apart the mechanism(s) driving TMPRSS3-related HL is the lack of a specific, well-validated antibody to detect TMPRSS3 protein in mouse cochleae. However, Tmprss3 RNA in mouse cochleae is expressed throughout the cells of organ of Corti, including IHCs, OHCs, and the spindle root cells, but no expression was detected within the stria vascularis and or in type II SGNs (7, 9). These data suggest TMPRSS3 functions within the sensory HCs of the cochlea.

To date, there are a limited number of potential downstream targets for TMPRSS3. Previously, the outward rectifying K⁺ channel, KCNMA1, was shown to be absent in the HCs of P12–P13 Tmprss3^Y260X/Y260X mutants and has been hypothesized to be a downstream target of TMPRSS3. To test whether KCNMA1 was restored in surviving Tmprss3^Y260X/Y260X HCs in vivo, we analyzed the KCNMA expression in double-mutant mice. Compared with controls (Tmprss3^Y260X/+; Mitf^+/+), surviving HCs in the Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh model also did not show expression KCNMA1 from P12 to P15, (Figure 6), indicating that KCNMA1 expression in surviving HCs requires TMPRSS3. It should also be noted that KCNMA1 mutant mice are not profoundly deaf and develop a late-onset, high-frequency, mildly progressive HL (16). The role KCNMA1 loss plays in the pathobiology of TMPRSS3-related HL remains unclear.

Pou3f4^delJ mice and Mitf^+/Mi-wh mice are deaf due to a failure to generate EP, and both lines have progressive HC loss. Although the decrease in EP resulted in significant HC survival for TMPRSS3 mutants crossed with either line, ultimately these crosses are still deaf. To circumvent the effects of genetic manipulation, we sought to regulate EP pharmacologically by manipulating electrolyte balance. Using furosemide, a loop diuretic, we treated Tmprss3^Y260X/Y260X mice with varying dosing regimens. When Tmprss3^Y260X/Y260X mice were treated systemically with this drug, we saw an increase in HC survival (Figure 7), during the critical P12–P14 time point, primarily in the apex. HC survival was not as robust as what we saw with complete oblation of EP via genetic manipulation (Figure 5). It is unclear to what extent and duration furosemide lowered EP in treated animals, and further studies are needed to explore dosing and its impact on regulating EP. Nevertheless, loop diuretics may provide a mechanism to extend the therapeutic window for TMPRSS3 HL in humans. This is particularly important given that humans develop hearing, and EP, in utero and may be born with permanent HC loss. Pharmacologic reduction of EP may provide a method for preservation of cochlear HCs to allow for later gene therapy intervention (29).

In humans, pathogenic variants in TMPRSS3 result in 2 distinct phenotypes: congenital severe-to-profound HL (DFNB10) and postlingual progressive HL (DFNB8). We suspect the DFNB10 phenotype is associated with a toxic increase in EP that results in HC death and profound HL. Whereas the pathomechanism for DFNB8 remains elusive, it is less likely tied to EP, given its milder phenotype. More work is needed to understand the full extent of TMPRSS3’s role in auditory function.

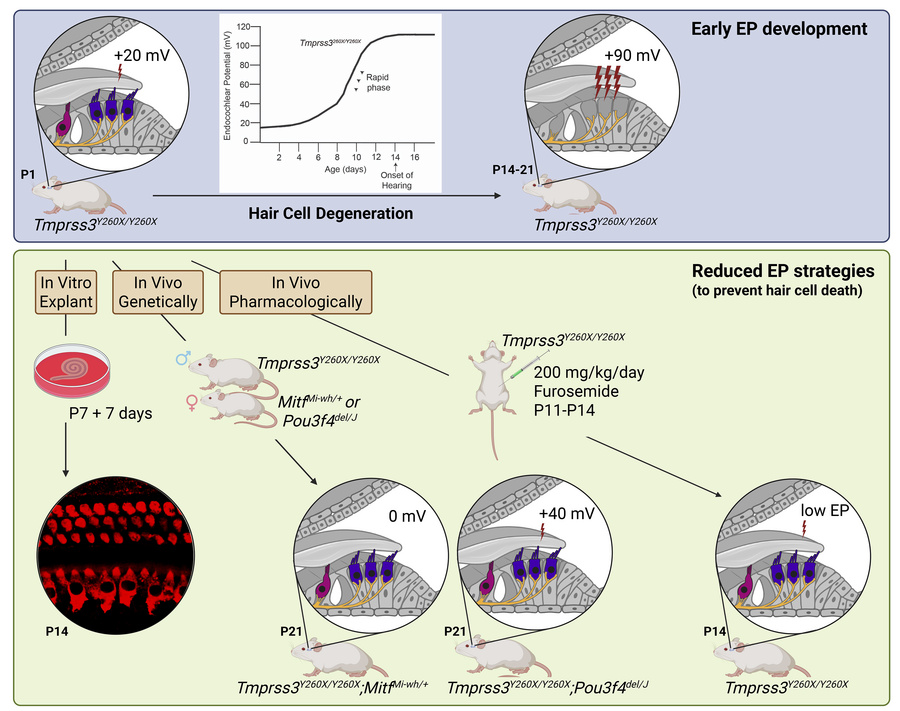

In summary, we implicate defects in EP as the possible pathomechanism underlying severe-profound TMPRSS3-related HL. We show through multiple lines of evidence that HL in Tmprss3^Y260X/Y260X mice is due to a toxic premature increase in EP that results in subsequent HC death just before and at the onset of hearing. We also show, by manipulating EP, either by genetic manipulation or pharmacologically, HC death can be eliminated or diminished, indicating a mechanism for treatment of TMPRSS3-related HL.

Sex as a biological variable. Our study examined male and female animals, and similar findings are reported for both sexes.

Data availability. Further information and requests for resources and reagents should be directed to and will be fulfilled by the corresponding author. Research reagents generated in this study will be distributed upon request to other investigators under a material transfer agreement. Microscopy data reported in this article will be shared by the corresponding author upon request. Original code is not reported in this article. Any additional information required to reanalyze the data reported in this work is available from the corresponding author upon request.

Experimental model details. The mice were housed in a temperature-controlled room with a 12-hour light/dark cycle and had free access to water and food. Male and female mice were used in all experiments (P7–P48). Tmprss3^Y260X/Y260X mice (C3HeB/FeJ background) were provided by Michel Guipponiat (University of Geneva, Geneva, Switzerland). C3HeB/FeJ (RRID: IMSR_JAX:000658), C3HeB/FeJ-Pou3f4^del-J/J (RRID: IMSR_JAX:004406), and B6.Cg-Mitf^Mi-wh/J (RRID: IMSR_JAX:000057) mice were purchased from The Jackson Laboratory. Tmprss3^Y260X/Y260X;Pou3f4^del-J double-mutation mice were generated by crossbreeding Tmprss3^Y260X/Y260X and C3HeB/FeJ-Pou3f4^del-J/J. Tmprss3^Y260X/Y260X;Mitf^Mi-wh/J hybrid strain mice were generated from backcrossing B6.Cg-Mitf^Mi-wh/J to C3HeB/FeJ to obtain C3.Cg-Mitf^Mi-wh followed by crossbreeding Tmprss3^Y260X/Y260X and C3.Cg-Mitf^Mi-wh. The Mitf^+/Mi-wh mouse recapitulates human Waardenburg syndrome in that the mutation functions in a dominant-negative fashion. Heterozygous Mitf^+/Mi-wh mice have profound HL, lack of EP, and altered fur coloring. Mitf^Mi-wh/Mi-wh share these same characteristics but are less viable and poor breeders. For these reasons, we used Tmprss3^Y260X/Y260X;Mitf^+/Mi-wh as our experimental animals.

Genotyping. Genomic DNA was prepared from the mouse ear notch with QuickExtract DNA extraction solution, following the manufacturer’s instructions. For the Tmprss3^Y260X/Y260X mice, PCR amplicons were generated using 10 pmol of each primer (TMP3SEQ_F and TMP3SEQ_R) and then sequenced with TMP3SEQ_F primer to determine the genotype of the mice. For Pou3f4^del-J mice, the TaqMan quantitative PCR protocol (protocol 41591 from The Jackson Laboratory) was performed on QuantStudio 5, and the comparative Ct values of Pou3f4 and housekeeping Apob gene were calculated. The ratio of Ct values of Pou3f4 mice were compared to Ct values of confirmed wild-type, hemizygous, and homozygous Pou3f4 mice to determine the genotype of unknown sample. For Mitf^+/Mi-wh mice, direct sequencing was performed using a commercial laboratory (TransNetyx). The list of all primers and sequences used for genotyping can be found in Supplemental Table 1.

Scanning electron microscopy. The P14 mice were euthanized by decapitation. The cochlea was removed from the temporal bone and fixed for 24 hours with 2.5% glutaraldehyde in 0.1 M sodium cacodylate buffer (pH 7.4) containing 2 mM CaCl₂, washed in buffer. The sensory epithelium was harvested by removing the bony cartilage, the lateral wall, Reissner’s membrane, tectorial membrane, and the cochlear nervous tissue under the stereomicroscope and was post-fixed for 1 hour with 1% OsO₄ in 0.1 M sodium cacodylate buffer and washed. The tissues were dehydrated via an ethanol series, critical point dried from CO₂, and sputter coated with gold. The morphology of the HCs was examined in an FEI Quanta 200 scanning electron microscope (Thermo Fisher Scientific) and photographed.

FM 1-43FX staining. The P7 pups were euthanized by decapitation. The cochlea was removed from the temporal bone and placed in ice-cold DMEM/F12 medium. The sensory epithelium was harvested by removing the bony cartilage, the lateral wall, Reissner’s membrane, tectorial membrane, and the cochlear nervous tissue under the stereomicroscope prior to FM 1-43FX staining. The 10 mM stock solution of FM 1-43FX was prepared in DMEM/F12. The sensory epithelium was stained with 10 mM FM 1-43FX for 30 seconds at room temperature (RT) and immediately washed with DMEM/F12. The tissue was transferred to the glass slide within DMEM/F12, covered with coverslips, visualized on Leica DMi8 microscopy equipped with epifluorescence optics and Leica Y3 filter cube (excitation 545 nm, emission 605 nm).

SGN subtypes. The P11 and P21 pups were euthanized by decapitation. The cochlea was removed from the temporal bone and fixed with 4% paraformaldehyde overnight at 4°C. Cochlea were then decalcified in 120 mM EDTA for 1 day (P11) or 3 days (P21) at RT. The EDTA was refreshed daily, and the elasticity of bone structure was checked to confirm the complete decalcification. The cochlea was cryoprotected in 30% sucrose in PBS and embedded in TF Tissue Freezing Medium. Modiolar sections of 6 μm were cut on a cryostat and air-dried for 2 hours. The sections were permeabilized with 0.5% Triton X-100 in PBS for 10 minutes at RT, blocked with 5% goat serum in PBS overnight at 4°C, and incubated with primary antibody (tubulin β-3 for type I, calretinin for type IA, calbindin for type IB, Brn-3a for type IC, and NGFR for type II SGNs) in 5% goat serum in PBS overnight at 4°C. After washing with 0.01% Trixon X-100 in PBS 3 times for 10 minutes each, the sections were incubated with secondary antibodies (Alexa Fluor 488 conjugated goat anti–rabbit IgG; Alexa Fluor 647 conjugated goat anti–mouse IgG1; Alexa Fluor 568 conjugated goat anti–mouse IgG2a; and Alexa Fluor 647 conjugated goat anti–rabbit IgG) in 5% goat serum in PBS for 1 hour at RT. The sections were washed and mounted with ProLong Gold Antifade Mountant with DAPI. Staining was visualized on Leica DMi8 microscopy equipped with epifluorescence optics. The percentages of SGN subtypes were quantified by calculating the number of immunopositive cells for each marker relative to the total number of SGNs (Figure 2). The total number of type I SGNs was determined by counting TUJ1-positive cells within a 10,000 μm³ volume, defined as a 100 μm × 100 μm area with a depth of 1 μm (Supplemental Figure 1). Details of all antibodies used, including the source and catalog number, are included in Supplemental Table 1.

Mouse cochlea explant culture. The explant cultures were performed on both P14- and P35-equivalent explants. For P14-equivalent explants, pups from Tmprss3^Y260X/Y260X and Tmprss3^+/– control littermates were euthanized by decapitation at P7. The sensory epithelium was harvested by removing the bony cartilage, the lateral wall, Reissner’s membrane, tectorial membrane, and the cochlear nervous tissue under the stereomicroscope. The sensory epithelium was transferred to 6-well Millicell Cell Culture Inserts with a Pasteur pipette and cultured for 7 days at 37°C in DMEM/F12 medium supplemented with 100 mg/mL Normocin. For P35-equivalent cochlear explants, cochleae were harvested from Tmprss3^Y260X/Y260X animals and Tmprss3^+/– control littermates at P5, plated on glass cover slips, and cultured in 1% FBS, HEPES, and MEM + GlutaMax for up to 30 days (D30; the equivalent of P35). The sensory epithelium was then fixed with 4% PFA for 20 minutes at RT and stained for Myosin7a (Myo7a). Details of all antibodies used, including the source and catalog number, are included in Supplemental Table 1.

Physiologic auditory system evaluation in mice. Auditory evaluation using ABR and otoacoustic emissions were performed as described previously (34).

EP measurement. For P7–P24 mice, measurement of EP was performed while mice were fully anesthetized using ketamine/xylazine and immobilized in the ventral position. The head was further immobilized and stabilized using a suture passed around the maxillary central incisors. Sterile technique was used throughout the procedure. We first began with a midline incision to expose the trachea. After dividing the strap muscles, a simple tracheotomy was performed to allow CO₂ egress during immobilization, which can lead to reduction in EP (12). The left bulla was then identified and dissected, allowing exposure of the cochlea. A 1 mm diamond bit on a high-speed drill was used to remove the bone just above the basal turn lateral to the round window membrane. Care was taken to not disrupt the membranous labyrinth. A pulled-glass capillary microelectrode (3–5 MΩ) was filled with 150 mM KCl and mounted on a micromanipulator. The ground electrode was placed into neck soft tissue. The microelectrode was then advanced into the scala media through the stria vascularis while measuring the response. Voltage was recorded before advancing into the scala media and 0 mV was set as the reference. The DC voltage was amplified (AxoPatch 200B Patch Clamp Amplifier; Molecular Devices) ×10 and continuously acquired using pCLAMP (Axoscope 11). An appropriate potential was identified when a measurement was stable for at least 5 seconds and the potential disappeared with advancement of the microelectrode into the scala vestibuli.

For P28 mice, measurement of EP was performed as previously described (12). Briefly, P28 mice were anesthetized with 2,2,2-tribromoethanol (T4842; Sigma-Aldrich) at a dose of 0.35 mg/g body weight. EP measurements were made using glass microelectrodes inserted into the round window and through the basilar membrane of the first turn of the cochlea. Data were recorded digitally (Digidata 1440A and AxoScope 10; Axon Instruments) and analyzed using Clampfit10 (RRID: SCR_011323; Molecular Devices). Six Tmprss3^Y260X/Y260X and 6 control mice (equal ratios of male and female mice) were evaluated. All members of the research team were blinded to the genotype of the mice during EP testing. The 2 groups of mice were handled similarly to control for confounding variables (e.g., cage location, feeding time).

Whole-mount immunofluorescence. The pups between P16 and P31 were euthanized by decapitation. The cochlea was then removed from the temporal bone, then decalcified in 120 mM EDTA for 3 to 4 days at RT. EDTA was refreshed daily with sponginess checked to confirm complete decalcification. The sensory epithelium was harvested by removing the bony cartilage, the lateral wall, Reissner’s membrane, tectorial membrane, and the cochlear nervous tissue under the stereomicroscope prior to permeabilization by 1× PBS/0.5% TritonX-100 at RT. Tissue was blocked overnight in 5% goat serum/1× PBS in 4°C and incubated with primary antibody (Myo7a for HCs) in 5% goat serum in PBS overnight at 4°C. After washing with 0.01% Trixon X-100 in PBS 3 times for 10 minutes each, the sections were incubated with secondary antibodies (Alexa Fluor 568 conjugated goat anti–rabbit IgG; Alexa Fluor 555 conjugated goat anti–rabbit IgG; and Alexa Fluor 488 conjugated goat anti–mouse IgG2a) in 5% goat serum in PBS for 1 hour at RT. Tissue was washed again 3 times in 1× PBS/0.01% TritonX-100 for 10 minutes at RT. Hoechst 33342 in 1× PBS was added after the last wash. Tissue was briefly rinsed with 1× PBS and transferred onto a slide. Using a stereoscope, the tissue was oriented so that the HCs were face up, mounted with Invitrogen ProLong Gold Antifade Mountant with DAPI, and allowed to dry overnight. Slides were visualized using a Zeiss LSM 880 confocal microscope. HC count analysis was performed manually using ImageJ (NIH). Details of all antibodies used, including the source and catalog number, are included in Supplemental Table 1.

KCNMA1 quantification. For KCNMA1 quantification, blocking was performed for 1 hour in 2.5% normal donkey serum and stained at 4°C overnight with primary antibodies (mouse anti-Myo7a, mouse anti-parvalbumin, and rabbit KCNMA1/KCa 1.1). After washing with PBS, samples were incubated with secondary antibody (Alexa Fluor 488 conjugated goat anti–mouse IgG2a and Alexa Fluor 555 conjugated goat anti–rabbit IgG) and Alexa Fluor Plus 405 Phalloidin. Confocal imaging was performed using 10× air and 63× oil-immersion objectives with a Zeiss LSM 800 confocal microscope. Maximum intensity projection images were generated in Image J. KCNMA1 punctae were counted using automated quantification with Image J.

Pharmacologic reduction of EP using furosemide. Mice were injected intraperitoneally with varying amounts of furosemide diluted in saline from P10 to P14 from 50 mg/kg to 200 mg/kg. A dose of 200 mg/kg daily with twice-daily saline boluses (100 μL/g) has been shown to be well tolerated and to effectively reduce the EP in mice (35).

Statistics. Data are presented as mean ± SD and were derived from at least 3 independent experiments, unless otherwise indicated. Statistical analysis was carried out in GraphPad Prism 9, SAS version 9.4 (SAS Institute), and R software (R Foundation for Statistical Computing, http://www.r-project.org/). The exact Wilcoxon rank-sum test (exact Mann-Whitney U test) was used to compare groups for data that were not normally distributed and an unpaired t test was used to compare group means for normally distributed data. The nonparametric ANOVA with Tukey’s post hoc test (36, 37) was used to compare untreated and treated mice in base, middle, and apex cochlear turns. All statistical tests were 2-sided, with statistical significance set at α = 0.01.

Study approval. All animal experiments were approved and performed in compliance with the guidelines provided by the IACUC at Indiana University School of Medicine (protocol 23148) or at Boston Children’s Hospital (protocol 000013339).

Data availability. Values underlying graphed data and reported means presented in both the main text and supplemental material are included in the Supporting Data Values file.
