Maturational differences in lung NF-κB activation and their role in tolerance to hyperoxia
J. Clin. Invest. Guang Yang, et al. 114:669
doi:10.1172/JCI19300 [Go to this article.]

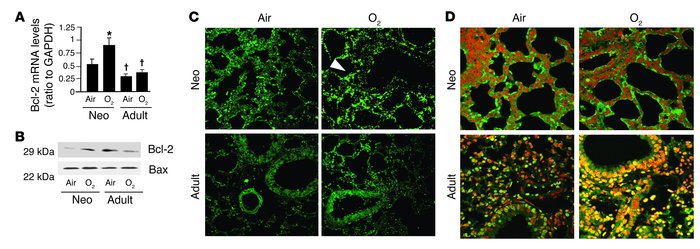

Figure 6
Bcl-2 expression and TUNEL staining in lungs of WT mice exposed to 72 hours of hyperoxia. (A) Bcl-2 mRNA levels were evaluated by RT-PCR. Densitometric values are expressed as a ratio to GAPDH. Values are the mean ± SE of 3 separate experiments. *P < 0.05 vs. air-exposed mice. P < 0.05 vs similarly exposed neonates. (B) Immunoreactive Bcl-2 and Bax protein levels. (C) Immunohistochemical staining of Bcl-2 protein. Note that increased Bcl-2 was localized predominantly in the alveolar epithelial cells (arrowhead). (D) TUNEL staining in mouse lung tissues after hyperoxia. Note the relatively low number of TUNEL-positive cells in the neonatal lung but the high signal intensity in the similarly exposed adult lung (yellow).
