Characterization of the clonal hierarchy and immunophenotype of PTPN11 mutations in acute myeloid leukemia
Sydney Fobare, Chia Sharpe, Kate Quinn, Kinsey Bryant, Linde A. Miles, Robert L. Bowman, Carolyn Cheney, Casie Furby, Marissa Long, Kaytlynn Fyock, Ben Wronowski, James R. Lerma, Krzysztof Mrózek, Deedra Nicolet, Thomas M. Sesterhenn, Megan E. Johnstone, Jianmin Pan, Shesh N. Rai, Chandrashekhar Pasare, Nives Zimmermann, Wen-Mei Yu, Cheng-Kui Qu, Andrew Carroll, Richard Stone, Eunice S. Wang, Jonathan Kolitz, Bayard Powell, John P. Perentesis, Ann-Kathrin Eisfeld, Erin Hertlein, John C. Byrd
Sydney Fobare, Chia Sharpe, Kate Quinn, Kinsey Bryant, Linde A. Miles, Robert L. Bowman, Carolyn Cheney, Casie Furby, Marissa Long, Kaytlynn Fyock, Ben Wronowski, James R. Lerma, Krzysztof Mrózek, Deedra Nicolet, Thomas M. Sesterhenn, Megan E. Johnstone, Jianmin Pan, Shesh N. Rai, Chandrashekhar Pasare, Nives Zimmermann, Wen-Mei Yu, Cheng-Kui Qu, Andrew Carroll, Richard Stone, Eunice S. Wang, Jonathan Kolitz, Bayard Powell, John P. Perentesis, Ann-Kathrin Eisfeld, Erin Hertlein, John C. Byrd
View: Text | PDF
Research Article Hematology Oncology

Characterization of the clonal hierarchy and immunophenotype of PTPN11 mutations in acute myeloid leukemia

  • Text
  • PDF
Abstract

Mutations in protein tyrosine phosphatase non-receptor type 11 (PTPN11) have been considered late acquired mutations in acute myeloid leukemia (AML) development. Using single-cell DNA sequencing, we found that PTPN11 mutations can occur as initiating events in some patients with AML when accompanied by strong oncogenic drivers, commonly NPM1 mutations. The resulting AML has a diverse set of variably differentiated myeloid cells with few myeloid cells that lack leukemic mutations. The role of Ptpn11 as a codriver was confirmed in a murine model that exhibits an AML phenotype with a comparable immune diversity that is serially engraftable and reconstituted from early precursor cells. Furthermore, lineage-negative bone marrow cells from these mice reconstitute the full diversity of mature myeloid cells, and these cells exhibit an altered cytokine response after physiologic stimulation. Our work highlights how PTPN11-mutated AML is derived from a multitude of codominant and late acquired aberrations that have a previously unrecognized differentiated myeloid clonal expansion potentially contributing to pathogenesis of the disease.

Authors

Sydney Fobare, Chia Sharpe, Kate Quinn, Kinsey Bryant, Linde A. Miles, Robert L. Bowman, Carolyn Cheney, Casie Furby, Marissa Long, Kaytlynn Fyock, Ben Wronowski, James R. Lerma, Krzysztof Mrózek, Deedra Nicolet, Thomas M. Sesterhenn, Megan E. Johnstone, Jianmin Pan, Shesh N. Rai, Chandrashekhar Pasare, Nives Zimmermann, Wen-Mei Yu, Cheng-Kui Qu, Andrew Carroll, Richard Stone, Eunice S. Wang, Jonathan Kolitz, Bayard Powell, John P. Perentesis, Ann-Kathrin Eisfeld, Erin Hertlein, John C. Byrd

×

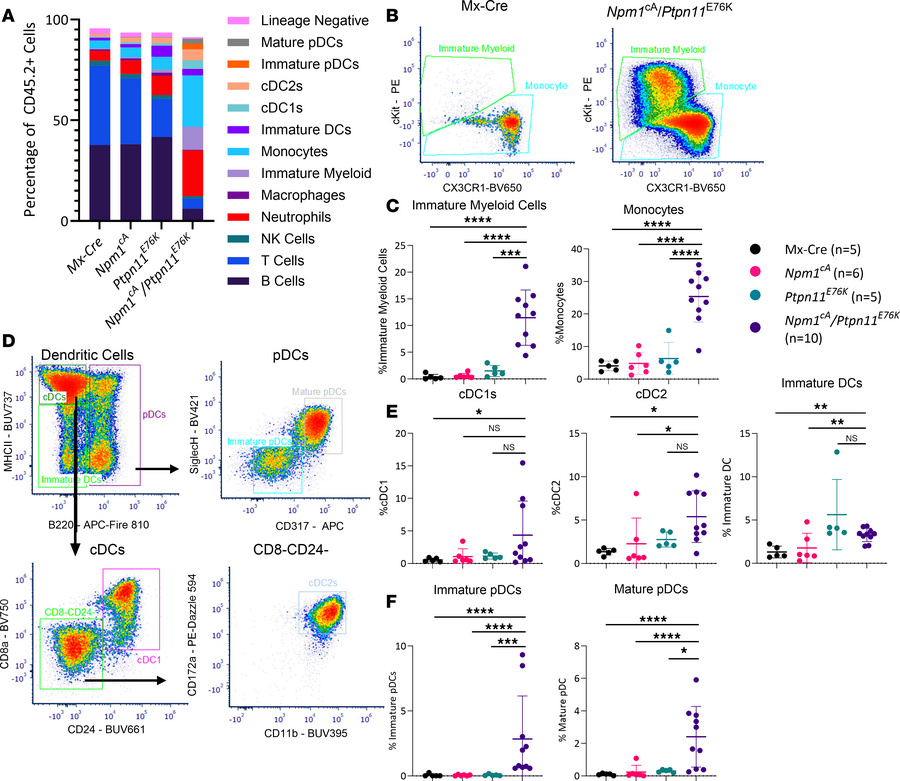

Figure 5

Immunophenotyping of Npm1cA/Ptpn11E76K splenocytes.

Options: View larger image (or click on image) Download as PowerPoint
Immunophenotyping of Npm1cA/Ptpn11E76K splenocytes.
Flow cytometric anal...
Flow cytometric analysis of splenocytes from Mx-Cre (n = 5), Npm1cA (n = 6), Ptpn11E76K (n = 5), and Npm1cA/Ptpn11E76K (n = 10) mice. Percentages were calculated as a fraction of total CD45.2+ cells and all control mice were age matched. (A) Percentage of immune subsets in the spleen. (B) Representative flow plots CX3CR1 and c-Kit expression on myeloid cells in a representative Mx-Cre and Npm1cA/Ptpn11E76K mouse. (C) Percentage of immature myeloid cells and monocytes. (D) Representative flow plots of dendritic cell (DC) gating from a Npm1cA/Ptpn11E76K mouse. (E) Percentages of conventional DC 1 (cDC1), cDC2, and immature DC populations. (F) Percentages of immature and mature plasmacytoid DC (pDC) populations. Data are presented as mean ± SD from 3 independent experiments. Statistical analysis by 1-way ANOVA with Benjamini-Hochberg FDR correction applied. *FDR-adjusted P ≤ 0.05, **FDR-adjusted P ≤ 0.01, ***FDR-adjusted P ≤ 0.001, ****FDR-adjusted P ≤ 0.0001. NK cells, natural killer cells.
