Role of CXCR2/CXCR2 ligands in vascular remodeling during bronchiolitis obliterans syndrome
J. Clin. Invest. John A. Belperio, et al. 115:1150 doi:10.1172/JCI24233 [Go to this article.]

Figure 7

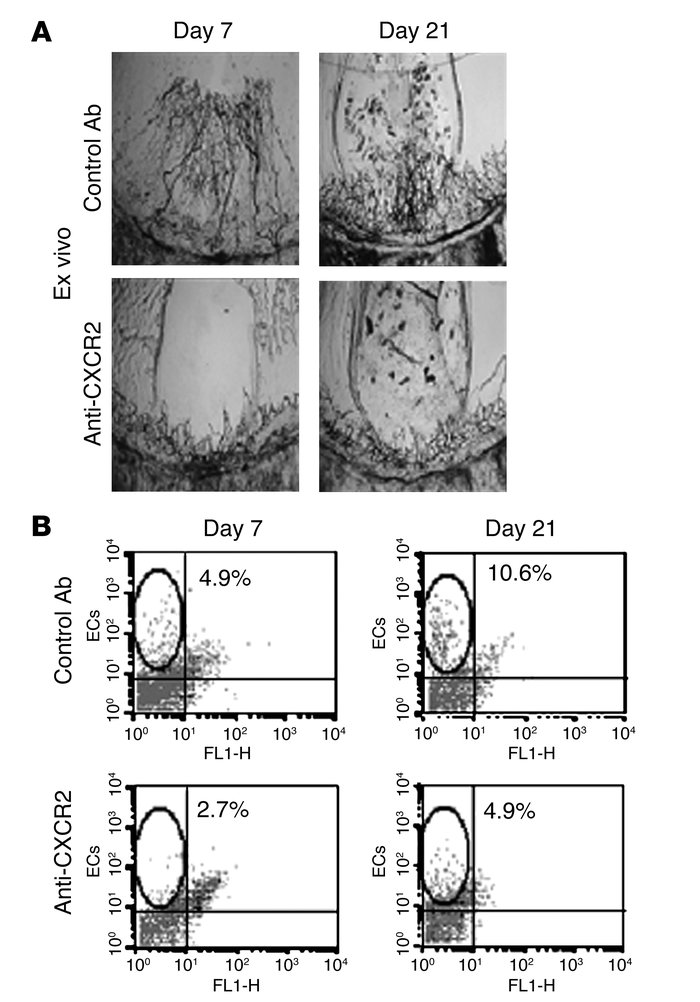

Vascular remodeling and angiogenic activity during murine BOS is attributable to CXCR2/CXCR2 ligand biology. (A) Representative CMP assay for vascular remodeling of tracheal-derived angiogenic activity from allografts with ex vivo–administered anti-CXCR2 Ab compared with control Ab. Magnification, ×20. (B) FACS analysis of MECA-32 from allografts treated with in vivo anti-CXCR2 Ab compared with control Ab.
