MyD88-dependent induction of allergic Th2 responses to intranasal antigen
J. Clin. Invest. Damani A. Piggott, et al. 115:459 doi:10.1172/JCI22462 [Go to this article.]

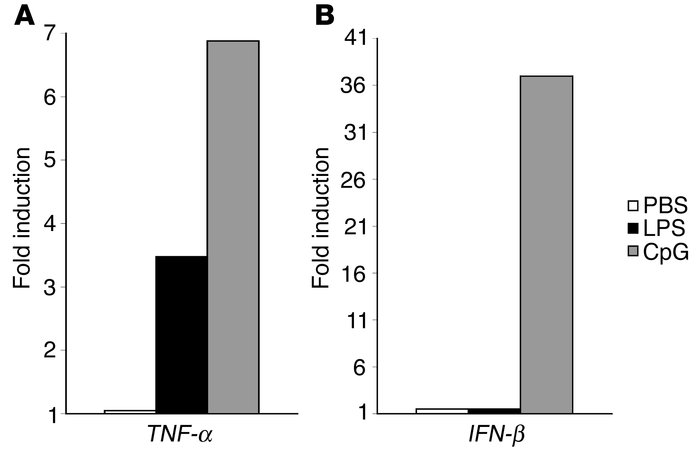

Figure 6
IFN- β is not induced in response to LPS exposure in the lung. WT mice were exposed to PBS, LPS, and CpG. Lung cells were harvested 18 hours after exposure and lysed, and RNA was extracted. Five micrograms of each RNA sample was analyzed by RNase protection assay using a RiboQuant mCK-3b probe. Fold induction of (A) TNF-α and (B) IFN-β is shown relative to PBS.
