MyD88-dependent induction of allergic Th2 responses to intranasal antigen
J. Clin. Invest. Damani A. Piggott, et al. 115:459 doi:10.1172/JCI22462 [Go to this article.]

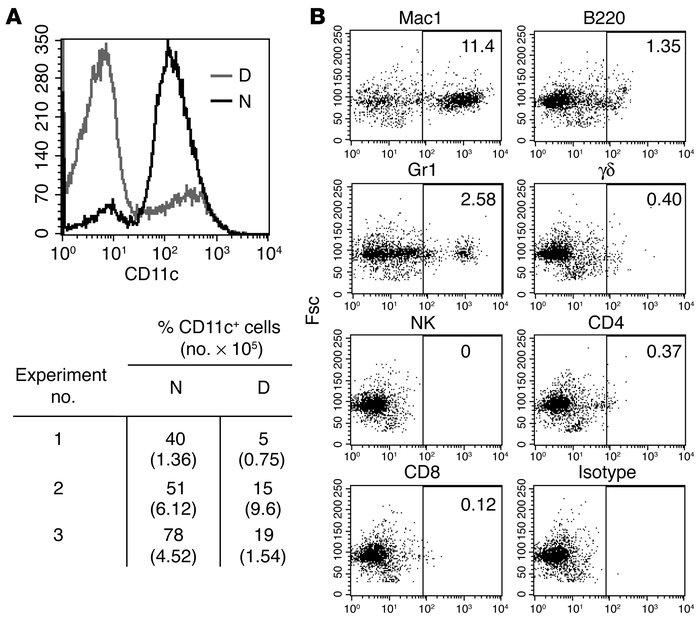

Figure 3
Phenotype of lung cells in the absence of collagenase digestion. (A) Unstimulated lung cells harvested from WT mice with and without collagenase digestion and analyzed by FACS. Percentage yield and total number of CD11c⁺ cells obtained from resting lung by collagenase digestion (D) are shown compared with those from nondigested tissue (N). (B) Analysis of non-CD11c⁺ cell population from nondigested lung tissue by FACS. Expression of cell markers Mac1, B220, Gr1, γδ, NK, CD4, and CD8 on non-CD11c⁺ cells is shown on forward scatter (Fsc) compared with an isotype control. Numbers indicate the percentage of live cells positive for the indicated cell marker.
