src homology 2 domain–containing tyrosine phosphatase SHP-1 controls the development of allergic airway inflammation
J. Clin. Invest. Tohru Kamata, et al. 111:109 doi:10.1172/JCI15719 [
Go to this article.]

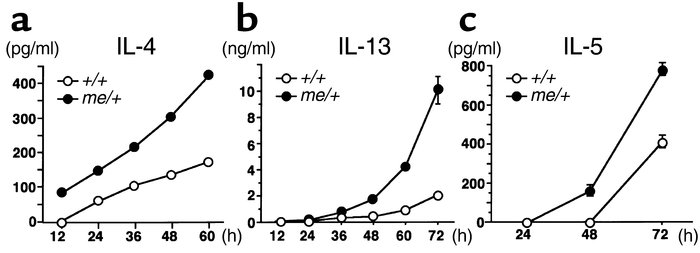

Figure 4Increased Th2 cytokine production in
me/+ T cells. Splenic CD4 T cells were stimulated with immobilized anti–TCR-β for the indicated times, and the concentrations of cytokines (
a, IL-4;
b, IL-13; and
c, IL-5) in the culture supernatant were determined by ELISA. Mean values and standard deviations are shown. In several cases, the deviations are too small to be visible. Three independent experiments were performed, and similar results were obtained.
